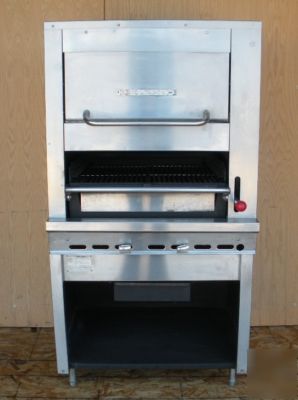

Montague 36W36 legend range infrared overfired broiler
Range-Match Infrared, Overfired Broiler
a gas-fired, infrared broiler with 42,000 BTU/hr cast iron burners with individual controls, heating ceramic radiants mounted above a counter-balanced, height-adjustable, chrome-plated steel cooking grid that is drawer-mounted for easy pull-out access, with a full width grease deflector and large capacity front-mounted grease drawer; supporting atop-mounted warming/finishing oven heated by the broiler; mounted on an open cabinet base with 6 (152 mm) height-adjustable legs.
BURNER/RADIANT SYSTEM FEATURES:
* Two 42,000 BTU/hr cast iron burners
* Ceramic radiants for uniform infrared heating
* Individual burner controls
* Standing pilot for automatic ignition
ROLL-OUT BROILER/GRID FEATURES:
* Two chrome-plated steel grid sections
* Counter-balanced grid assembly for easy height adjustment
* Infinite grid height adjustment from 2 to 5 (51 to 127 mm)
* Positive locking lift handle with cool ball-style grip
* Quiet, ball bearing mounted pull-out grid assembly
* Shielded horizontal grab-bar handle
dimensions are: 70" tall, 36" wide and 39" deep
