0.9 cu ft lab digital vacuum drying oven 250°c 12X12X11


This listing is for a brand new VO-16020 laboratory vacuum drying oven with chamber size of 300 x 300 x 275 mm (12 x 12 x 11").
VO series vacuum ovens use digital micro-computer to control its temperature, thus enhance precise temperature accuracy and uniformity. These ovens have easy to clean stainless steel mirror interior and toughened double glazing observation window. Adjustable door tightness with one-piece molded rubble sealing maintain great chamber vacuum level. They greatly shorten drying time for materials like paste or powder that can not be dried easily, and powder sample will not be moved or blew away like with traditional forced air ovens.
* Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
* 3" glass wool insulation prevents heat loss from working chamber.
* Silicone door gasket and positive latch door maintain seal at all vacuum levels.
* Exclusive polycarbonate safety shield protects door glass.
* Easy-to-clean stainless steel chamber interior.
* Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
* 2 adjustable shelves included (holds max 4 shelves)
* Vacuum pump required for vacuum operation (not included).

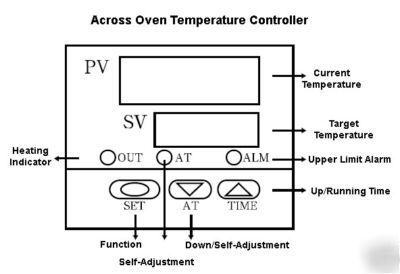

For an accurate temperature, calibrate your oven with the built-in temperature calibration, and set up temperature in controller. For more information on how to calibrate oven temperature, please refer to the operation manual.
* Optional gas injecting valve can be ordered for use in inert gas environment.
* 50% more efficient (shorter heating time) compare to traditional vacuum drying ovens.
* Vacuum environment lower liquid boiling point, great for heat sensitive material processing.
* Safer operation: vacuum or inert gas environment eliminate the possibility of oxide explosion when heated.
* Temperature uniformity: +/- 1%
Temperature accuracy: +/- 1.5oC
* Temperature range: Room temperature +10 C (+ 18 F) to 250 C (300 C Max for less than 60 minutes)
* Chamber size: 300 x 300 x 275 mm (12 x 12 x 11", 25 Liter)
* Outside dimension: 590 x 490 x 460 mm (24 x 20 x 18")
* Vacuum connector: ID 0.25" (6.35 mm)
