> New tpi 183 true rms digital multimeter
New tpi 183 true rms digital multimeter

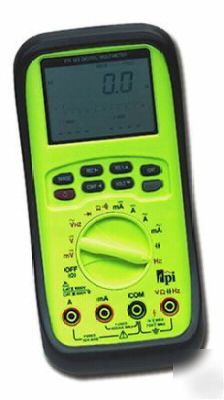

TPI 183 Portable True RMS Digital Multimeter
Brand New with Full Factory Warranty
True RMS, 3,260 count, full size DMM, capacitance, frequency, 750 ACV, 1,000 DCV, with analog bar graph and RS232 output capability
* 0 to 750 ACV; max resolution 1 mV
* 0 to 1,000 DCV; max resolution 0.1 mV
* 0 to 40M?; max resolution 0.1?
* AC/DC amps up 10 amps; max resolution 0.1uA
Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.3%
Maximum Input: 750V Maximum Resolution: 0.001V Accuracy: +/-0.75%
Maximum Input: 10A Maximum Resolution: 0.1 A Accuracy: +/-0.5%
Maximum Input: 10A Maximum Resolution: 0.1 A Accuracy: +/-0.75%
Maximum Input: 40M? Maximum Resolution: 0.1? Accuracy: +/-0.5%
Maximum Input: 200KHz Maximum Resolution: 0.01Hz Accuracy: +/-0.05%
Maximum Input: 10000 F Maximum Resolution: 0.01 F Accuracy: +/-2%
Temperature (K-Type Thermocouple)
4,000 count backlit LCD with dual sub displays and analog bargraph
7.4 x 3.4 x 1.2 (187mm x 86mm x 33mm) with boot
TPI 183 Complete Specification
