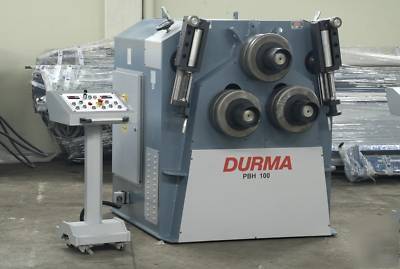

New durma pbh 100 angle roll 4 x 4 x 1/2"


Shaft Diameters........................................ 4.3"
Roll Diameters........................................... 12.4"
Motor Power............................................. 15 HP
Turning Speed........................................... 0 - 26 FPM
Dimensions................................................ 69" L x 53" W x 65" H
Weight........................................................ 7392 lbs.
1 set of standard Universal, hardened and ground rolls (special steel)
3-axis side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
Forward and back movement of lateral guide rolls are made hydraulically (Thrust )
Side supports are suitable for angle iron Leg in -leg out bending
Bottom rolls hydraulically adjust with 2 Programable digital readouts
Machine Advertised Locally, delivery stock - to 6 weeks,
please see: http:// /new-equipment/section-rolls/durma-pbm
please see similar machine Video, (PBH- 125) http:// /watch?v=zyu2eoKxKTo
