Dyna myte 2400 cnc benchtop vertical milling machine

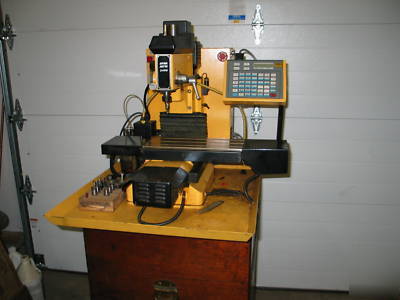

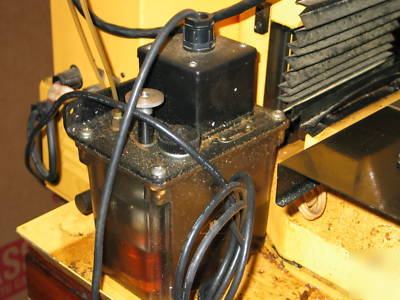

Dyna Mechtronics DM2400 "Dyna Myte" 2400 Benchtop CNC Vertical Milling Machine in EXCELLENT condition and fully operational. Machine is has Bijur Auto Lube unit. (see photo) and also comes with 8 toolholders. (see photo) 1 toolholder (in spindle) is collet type the rest are set screw type (in wood holding block).
Original cost was close to $20,000
Drilling Capacity .2" in mild steel and .37" in Aluminum
Endmill Capacity .37" mild steel or Aluminum
Max distance Spindle nose to table: 9.1"
Spindle Speed 0-10,000 continuously adjustable
Resolution: (all axes) 0.0001"
Rapid Traverse (all Axes): 30in/min
Position Accuracy: 0.012 in/total
Spindle Collet Capacity: 1.16"-3/8"
Dimensions: 23.7" Wide x 21.5" deep x 21.5" High
Electrics: 120volt/60Hz, AC single phase, 7 amps
RS-232 port: Yes,(for upload and download via standard null-modem cable)
