Accumulator charging kit universal hydraulic 340 bar

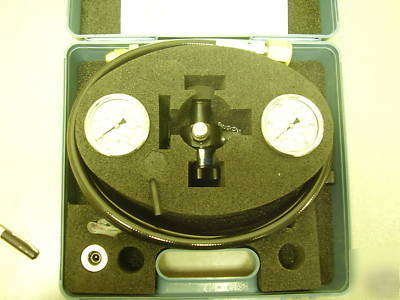

Universal Accumulator Charging Kit
Accumulator Connection- 7/8" 14 UNF - 5/8" 18 UNF - Vg 8 - M28 x 1.50
Hose - Approximately 2.5m long fitted with a G1/4" Cyl. female adapter at each end for connection to the pressurization port.
Connection to French Cylinder - 21.7mm dia. x 1.814 SI with seal for connection to the pressure source (comercially-available nitrogen cylinder, portable nitrogen station, power pressurizer, etc) and fitted to hose.
Pressure guages - 63mm dia. (glycerin-bath type) with G1/4" Cyl. rear outlet, fitted with a direct-connection adapter for connection to a minimess connector. 0 to 25 bar and 0 to 250 bar scale with 1.6% accuracy.
