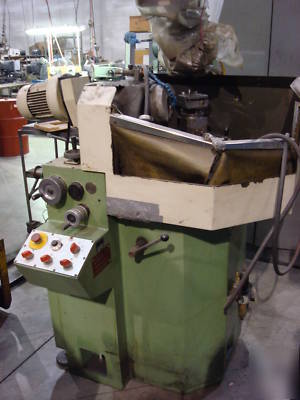

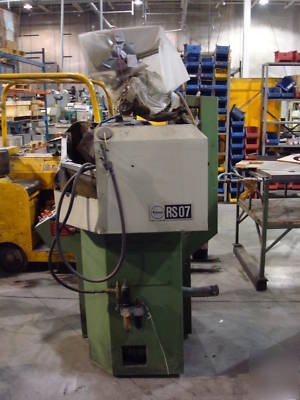

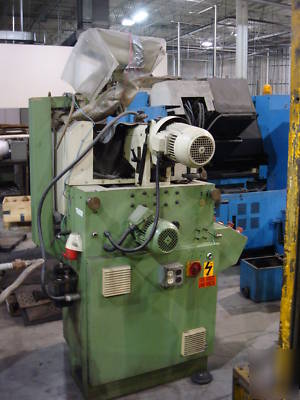

New tool grinder ewag model RS07. in 1993 tool grinder


Spindle Speed (Infinitely Variable) 1000-8000 RPM
Spindle Inclination (A-Axis) -5 Degree, +20 Degree
Setting Accuracy of Spindle Inclination 1 Degree
Oscillation Stroke, steplessly adjusting during operation 0-45mm (0-1.77")
Oscillation Frequency 30/60 min
Radius Setting (Z-Axis) 0.01-40mm (.0004-1.57")
Setting Accuracy of Z-Axis 0,01mm(.0004')
Retraction of slide from grinding to measuring position 45mm (1.77")
Grinding pressure: constant 250N
Cross table, clamping surface 155x205mm (6.1"x8.07")
Travel (U & W Axis) 60mm (2.36")
Max. Swiveling Angle (B-Axis) 210

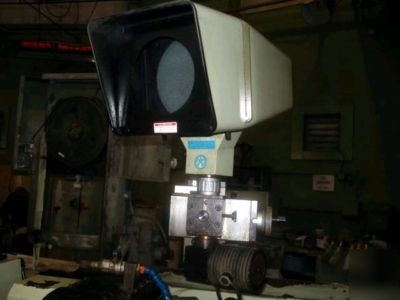

Projector with magnification in measuring position
Microtouch/Coburn Touch Probe Sound Sensor with Head Phones.

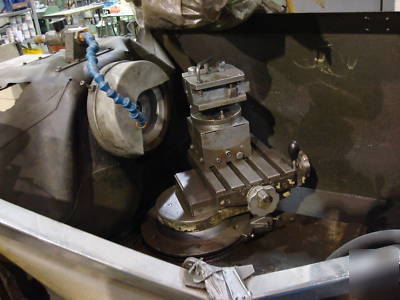

Projector with 2-axis travel. Magnification. Illumination. 6" x 8" T-slotted worktable. Workholding fixture. Spare wheel flanges. Spare diamond wheel. Coolant pump and tank with cyclonic style filtration.
Negotiated Also visit our website at Myerstc. com
