> Gigatronics 8651A rf power meter & power sensor 80301A
Gigatronics 8651A rf power meter & power sensor 80301A

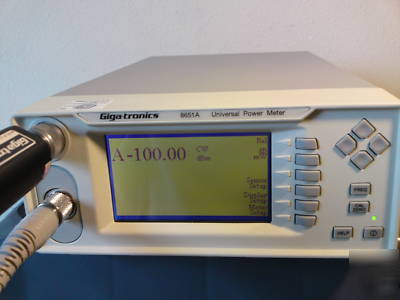

Gigatronics Universal Power Meter 8651A
The Giga-tronics 8651A Universal Power Meter has the extensive measurement capabilities and features you need to test today's sophisticated communications systems faster, easier and more accurately. The 8651A can measure the CW power, peak power and average power of TDMA, GSM, and CDMA (both IS-95 and third-generation 10 MHz wide band) signals. CW measurement speeds (readings/second) over GPIB are >1,750 and modulated measurement speeds are >300. And the Gigatronics 8651A includes many time saving features such as automatic time gate setting, direct crest factor measurement, and statistical power measurement analysis. Features include:
100 kHz to 40 GHz Frequency Range, depending on sensor
-70 to +47 dBm Power Range, depending on sensor
GPIB CW Measurement Speed (rdgs/s):
GPIB Modulated Measurement Speed (rdgs/s):
Uniform Sample Rate of 20 MHz and Random Sample Rate from 2.5 to 5 MHz
20 MHz Maximum Diode Sensor Video Bandwidth
10 MHz Instrument Video Bandwidth
Maximum CW Single Sensor Dynamic Range: 90 dB
Maximum Single Sensor Dynamic Range:
CDMA ((10 MHZ bandwidth) 80 dB
100 ns Maximum Peak Power Sensor Rise Time
Direct Crest Factor Measurement
Statistical Power Measurement Analysis
Power Sensor 80301A with cable 20954-001
The Giga-tronics Model 80301A CW Power Sensor lets you measure CW power from 10 MHz to 18 GHz at more than 1,750 readings per second over IEEE-488. The 80301A measures from -70 to +20 dBm.
Cosmetic Condition: Good as see on pictures
Working Condition: Working and passed zero cal.
We requires up to 1-2 business days to process your order. Additionally, some orders go through our fraud prevention department. If your order is selected, you will be notified and your order may be delay an additional 3 business days.
We offer 7 days DOA from the date you receiver the order.
