Lathe & mill trak series southwest industries
Both Machines purchased new in November 2007 for a total cost of $85,000 and used for 6 months. Been sitting as pictured since.

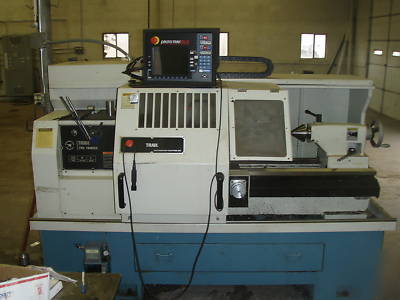

TRAK TRL 1840SX Macine Specifications-Lathe
Distance between centers - 40 1/4"
Coolant tank capacity - 13 gal.
Taper in reduction sleeve - MT#4
Spindle dia at front bearing - 3.35"
Bearing class (radial round)- P5
Spindle speed range (RPM)- 80-850, 250-2500
Tailstock Quill travel - 7 1 /8"
Power requirements, control - 110V; 1P; 8 A
Power requirements, machine - 220V;3P;60Hz
Dimensions net - 91 x 53 x 70"
Spindle motor brake - Dynamic braking
Way surface hardness - 400 - 450 HB
Head stock lubrication - Oil bath
Meehanite cast monolithic base
Heavy ribbed base construction
Sliding surfaces Turcite coated
Dovetails on cross slide, V-ways on saddle

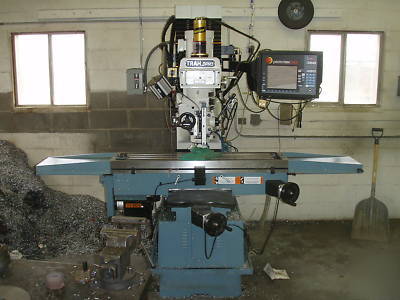

TRAK DPM SX5 Machine Specifications-Mill
* Travel (X, Y, Z axis) - 40 x 20 x 23.5"
* Spindle Speed Range RPM - Varispeed drive - 70-3950
* Spindle Speed Range with E Head Option - 40-600, 300-5000
* Spindle Center to Column Face - 20"
* Spindle Motor Power - vari-speed head - 5 HP
* Spindle Motor Power - Optional E head - 5 HP
* Power requirements, control - 110V; 1P; 8A
* Power requirements, machine with vari-speed head - 220/440V;3P; 14/7A
* Power requirements, machine with Optional E head - 220V;3P; 17A
* Maximum Weight of Workpiece - 1760 lbs.
* Height of table from bottom of bed - 41"
* Max spindle nose to table - 23.5"
* Width of machine including table - 94"
* Length with electric box door closed - 71"
* Overall width incl full table traverse - 136"
* Overall length with electrical door open - 81"
* Footprint of Machine - 24" x 48.4"
* Rapid traverse X, Y, Z - 150 IPM
* Precision ground ballscrews in the table, saddle and ram
* Chrome hardened and ground quill
* Slide ways are Turcite coated
* Wide way surfaces are hardened and ground
* Drilling max capacity, Varispeed head- 1" dia
* Milling max capacity, Varispeed head - 5 inch3/min
* Tapping max capacity, Varispeed head - 1"
* Drilling max capacity, Optional E head - 1" dia.
* Milling max capacity, Optional E head - 5 inch3/min
* Tapping max capacity, Optional E head - 1"
