Grizzly G4027 (9 x 42 table) 2 hp vertical turret mill


VERTICAL TURRET MILLING MACHINE, S/N 509849.
NEW 03/2000, BOUGHT IN 01/2003, ONLY OWNER.
PINNACALE LONGITUDINAL POWER FEED (X-AXIS), S/N 19857.
GRIZZLY MODEL H6090 DIGITAL READOUT (X-36" & Y-16"), INSTALLED 01/2008.
QUILL FEEDRATES .0015", .003, OR .006".
KNEE TRAVEL (Z-AXIS MANUAL) 16".
MAX DISTANCE SPINDLE TO COLUMN 19-1/2".
MAX DISTANCE SPINDLE TO TABLE 17 1/2".
POWER FEED X-AXIS 0 - 140 RPM.
POWER 2.0 HP 110/220V 60 HZ 1PH (PRE WIRED FOR 220V).
STEPPED SPEED RANGES 80, 135, 210, 325, 660, 110, 1750, & 2720.
FLOOR AREA 4.6' L x 4.8' W x 7' HIGH.
WEIGHT (BEFORE PALLETIZING) 2080 LBS.
PLEASE SEE MORE SPECS AT THE FOLLOWING LINK:
http:// /outlet/Vertical-Mill-2-HP-1-PH-9-x-42-Table-/G4027
(1) ONE SHOT LUBRICATION SYSTEM.
(2) G9815 - PARALLEL SET (.125 thick) 10 PAIRS PER BOX.

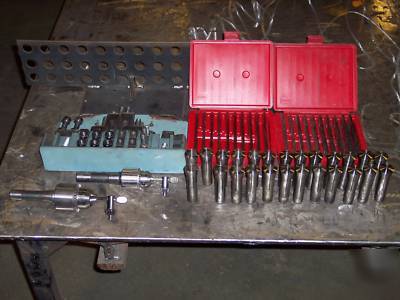

(1) FULL SET OF R8 COLLETS (13 pcs).
(1) SET OF R8 COLLETS, MISSING THE 13/16" (12 PCS).
(1) FULL SET OF T-SLOT CLAMPS W/ RACK.
