> New 15" touch screen pos system intel celeron 2.8G cpu

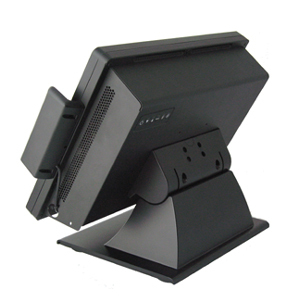

New 15" touch screen pos system intel celeron 2.8G cpu
* BRAND NEW 15" 5-Wire Resistive TFT TOUCH POS ALL-IN-ONE SYSTEM.
* Model number ST150T2, by Lava Technology. Made in Taiwan.
* Only use highest quality Sharp or LG TFT Display.
* Ready for network. Just add more stations.
* Work with any standard Retail or Restaurant software.
* Lots of software and hardware option to choose from.
* Cost effective stand alone all-in-one POS terminal
* Extremely solid and reliable structure
* Tilt angle 0~90 degree allows the ST series located on counter space or wall mount
* OSD and power switch control panel on the rear
* Removable base and wall mount capability with 75mm VESA holes
* Monitor : 15" Active Matrix TFT Display
* Touch panel Five wire resistive
* Motherboard CPU: Intel Celeron 2.8Ghz CPU
Support Intel Core 2 Duo/Pentium D/Pentium 4 and more ; FSB Frequency: 800/1066/1333/1600Mhz
Chipset: Intel G31-M7 Intel ICH7
MEM: two 240 DDR2 DIMMs available upgrade max 4GB
(Standard MEM transmission DDR2 800/667 non ECC unbuffered)
Video: Intel GMA 3100 Graphic Accelerator
Ethernet: Realtek RTL 8102EL Integrated 10/100Mbps LAN
Sound card: High Definition Audio Codec ALC662
HDD: one 2.5 or 3.5" SATA2 Interface
I/O extension port: serial port x 3
PS/2 mouse keyboard port x 1
Game/MIDI x 1; Audio Line in/Line-out/Mic-in Jack x1
* VESA Mount available on back side(75mmX75mm)
* Display area(mm) 340(w) x 228(h)
* Brightness 250 cd/m2 ( standard)
* Display Interface 15 injection VGA
* Touch Panel Interface USB ( Optional RS232, need to specified in order)
* Power supply Internal 200w
* Color Black front face (Optional Silver Color, need to specified in order)
* Total size : 378 x 348 x 226 mm
* Working temperature 0 to 40 degree
* Touch panel: 5 wire resistive(Taiwan production)
* Touch panel Detail Specification:
Palm rejection model available
Electrical :Operation Voltage DC5V
Insulation 20 Megaohms or greater / 25V (DC)
Optical : Transmittance 82% +-5%
Environmental : Operating Temperature -10C to +60C
Storage Temperature -40C to +75C
Mechanical : Activation Force 50g or less
(Custom activation force and palm rejection available)
Durability : Finger Touch 35M touches
Surface Hardness 3H or greater
Windows 95/98/2000/ME/XP/WePOS/NT/CE/Vista, DOS, Linux
* Touch driver support : Operating System
Optional Software and Hardware
* Software - Microsoft WEPOS -> ADD $115
* Software - Microsoft XP Pro Embedded -> ADD $145
* Receipt/Kitchen Thermal Printer 80mm : TM200 ->ADD $150
* Upgrade to Intel 440 or Pentium Dual Core 1.8G CPU with 10/100/1000Mbps LAN main board ->Available!
* Pole Custom Display 2x20 VFD in English ->ADD $ 85
* MSR IdTech Card Swiper USB Interface->ADD $ 65
* Samsung or Epson Receipt/Kitchen printer (Parallel/Serial/USB/Ethernet) ->Call
* More Stations -> Available!
