Melles griot 06 glc 002 collimating focusing lens nir

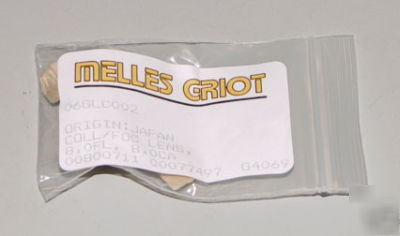

MELLES GRIOT 06 GLC 002 COLLIMATING FOCUSING LENS NIR
* Paraxial Focal Length (f): 8 mm 2% at 830 nm
* Design Wavelength: 830.0 nm
* Wavelength Range: 670 1550 nm
* Wavefront Distortion: ?/4
* Field Angular Radius: 1.0
* Focused Spot Diameter: 2.02 m
* Clear Aperture Diameter: 8.0 0.5 mm
* Housing Material: Black-Anodized Aluminum
* Working Distance fW: 1.13 mm
* Housing Length L: 10.79 mm
* Coating: Single-layer MgF2 AR coating for 830 nm
Unit retails new for $313.00. This unit is New and Unused.
