Fluke 1587 insulation multimeter make offer-free ship

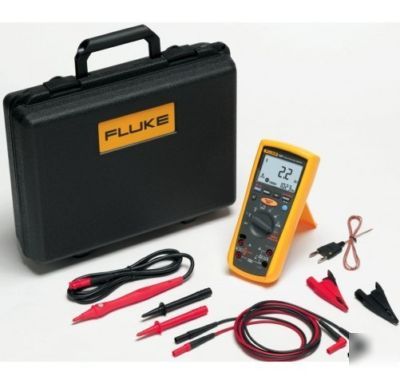

You are looking at a NEW Fluke 1587 Insulation Multimeter
FLUKE1587.jpg picture by foghorn_leghorn
FLUKE1587B.jpg picture by foghorn_leghorn
The Fluke 1587 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Remote probe Test leads Alligator clips K-type thermocouple Hard case Four AA alkaline batteries Quick Reference Guide CD Rom with Manual
*with low pass filter; 3db @ 800 Hz
Temperature Measurement (1587 only)
Maximum Resistance per Test Voltage:
Maximum Resolution per Test Voltage:
1587: (1.5 % + 5) to 600 M , (10 % + 3) above 600 M
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
203 x 100 x 50 mm (with holster)
Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 M with a duty cycle of 5 seconds on and 25 seconds off.
