Digitrak mark iv beacon tracker directional drilling
This Pipe locator and Relay are in good condition.
"The Mark IV has a single display window with simple graphics and menu-driven operations. It employs all of the advanced features of the Mark III, including the patented look-ahead locating capability, and uses the same operating frequency. This means the system is compatible with all of the previously manufactured DCI transmitters, remote displays, DataLog equipment, and Ni-Cad battery packs.
The DigiTrak Mark IV Receiver simplifies locating by providing the operator with a large easy-to-read graphic display. This display illustrates how to position the receiver to find the locate points, the position above the transmitter, and the predicted depth out in front of the drill head. A box on the display represents the DigiTrak receiver. As the operator moves towards a locate point, a bulls-eye (representing the locate point) will appear on the display screen. As the receiver passes directly over the locate point, the bulls-eye moves into the box.Turning the box 90 degrees over the locate point further pinpoints the locate points position. As you approach the drill head, a line will appear onthe display; once the line moves into the box, the receiver is over the tool.
Locating the transmitter with the Mark IV no longer requires you to hold in the trigger. All of the transmitters nformation, including signal strength, is displayed in the window without the rigger being held in. When the trigger is held in, the display shows the tools depth below ground and the ultrasonic distance (height-above ground measurement). When the trigger is held in at the front locate point, you will observe he predicted depth along with the ultrasonic measurement. Other Mark IV features include the capability to view depth measurement modes in metric or English units; the depth reading will display as meters and centimeters or feet and inches, respectively. The transmitters temperature is available in both centigrade and Fahrenheit, and the pitch angle can be read in either percent slope or degrees."

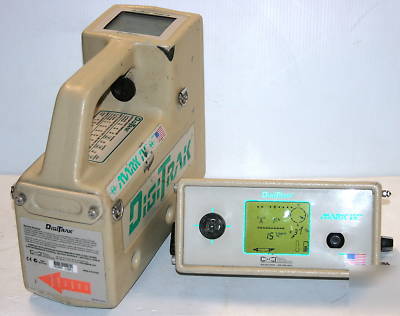

* Type: Underground Pipe & Beacon Locator
* Receiver Model: Mark IV Receiver
* Receiver Serial: MDRR1901, (Total Service Time 164hrs)
* Remote Display Model: Mark IV Remote Display
* Remote Display Serial: MDD1862
Further Photos & Info: http:// .au
Replacement price on this item is approximately $.
Please contact me on 0419-916836 or ****@isurplus.com.au if you require higher resolution photos, or need to discuss this item.
