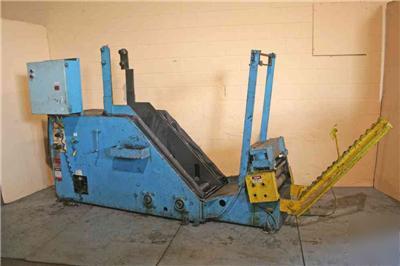

8000 lbs x 18" air feeds powered coil cradle
8000 LBS X 18" AIR FEEDS POWERED COIL CRADLE
SERIAL .................................. 871118
MODEL ................................... C80
NEW ..................................... 1987
MAXIMUM COIL WEIGHT ..................... 8000 LBS
MAXIMUM COIL WIDTH ...................... 18
MAXIMUM COIL OUT SIDE DIAMETER .......... 60
VARIABLE SPEED .......................... 30 TO 90 FPM
LOOP CONTROL WITH DANCER ARM ............ YES
EXIT PINCH ROLLS ........................ YES
PNUMATIC PINCH ROLL CONTROL ............. YES
AIR CLUTCH .............................. YES
MOTOR, HORSEPOWER ....................... 3
