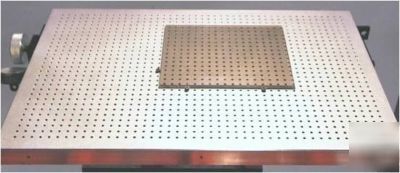

Optical honeycomb breadboard - 48" x 48"
Super precision, flatness, stability and durability.
Our research and industrial grade optical breadboards provide the near perfect flatness (not more than +/- .001" per square foot), rigidity, damping and precision that are requisites for optical scientists. The mounting surface is made of anodized aluminum, but we offer a stainless steel line for special applications. Our breadboards are fully non-magnetic and experience minimal deflection under load due to the aluminum honeycomb core and aluminum top and bottom plates. Custom surface material and honeycomb material are available upon request.
Large optical breadboards are drilled on our in-house manufactured, specialized drilling machines. Breadboard sizes up to 14 feet wide by unlimited length are precision drilled on these machines, which run 24 hours a day. Our low prices are due to this automated and highly efficient manufacturing method.

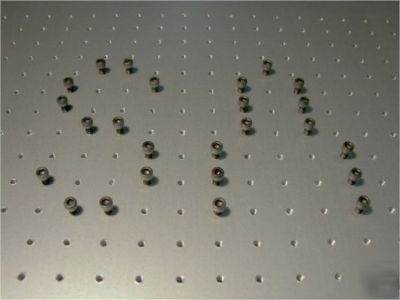

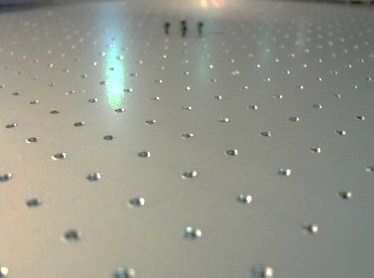

1/4-20 tapped holes are drilled on a standard 1" grid. Custom grid layouts available upon request.
Tap sizes available: 4-40, 6-32, 8-32, 10-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24. M6, M3.
Other sizes available upon request.
Additional product information can be found here: http:// /optical/
