Digital readout dro 2-axis easson 60" lathe package
2-Axis Easson ES-8 Digital Readout System for Standard Lathe - 60" Machines
The ES-8 system includes a two axis display with built in linear power supply, two scale assemblies, related bracketry, mounting hardware, 12 month factory warranty, installation and operation manuals.
Display hardware features include high noise immunity and EMC design, linear power supply, highly durable polyester front panel membrane by Autotype UK over tactile button switches and bright LED displays, fully sealed design with aluminum casing, ultra low temerature rise transformer.
Function features include zero and go one touch axis zero button, Radiud/Diameter, center find, Taper, pre-set values, built in trig calculator with results transfer, 199 programmable sub datums, machine zero reference datum, absolute/incremental mode, inch/metric, incline surface function, and linear error compensation. Learn more here: http:// /PDF_Files/ES-8,scale.pdf

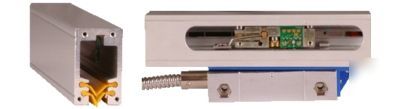

GS20/GS30 series scales with resolutions of 5 micron or 0.0002" - IP53, 100% inspected and laser calibrated with dual lip oil seal and 5 point P5 grade bearings on lapped guide ways for superior motion accuracy and long life.
Pick two of any stock scales(one major-Z and one minor-X axis): 1,600mm(63"), 200mm(8"), 250mm(10"), 300mm(12") - just call or email to verify availability and fit to your machine. (***) 937-4253 ****@millmaxusa.com
(check the scale dimensions in the install guide linked below especially to consider possible coolant drain hole interference and sufficient mounting space. The scales are called out in actual travel lengths - add 133mm or 5.23" for mounting hole centers for the GS20 and 126mm or 4.96" on the GS30 cross scales )
Click here for Scale Installation Guide PDF (4MB):
http:// /PDF_Files/ESInstallGS10.pdf
Click here for ES-8 Operation Manual PDF (14MB):
http:// /PDF_Files/ES8Manual.pdf
System includes all brackets and hardware for standard knee type milling machines, display mounting arm, installation and operation manuals, factory warranty paperwork and inspection check.
Also, ask about other brands and consider us for repairing your existing system. We sell and repair all major brands of DRO including Sargon, Acu-Rite, Newall, Fagor, Heidenhain, etc... Our professional service techs can help with repair or installation services on an individual basis, just ask.
For applications assistance and support please contact: Good News Industrial LLC (***) 937-4253 ****@millmaxusa.com
