> Advantest Q8344A optical spectrum analyzer 350NM-1750NM
Advantest Q8344A optical spectrum analyzer 350NM-1750NM
The Advantest Q8344A is an optical spectrum analyzer employing a Michelson interferometer
High resolution wavelength measurement of 0.01nm at 1.5 m band and 0.001nm at 0.5 m band
The coherent length, which cannot be measured by dispersion spectroscopy using a grading based spectrum analyzer, can be measured by Q8347 using the Michelson interference method. Therefore, the Q8344A can easily determine the noise suppression performance of the CD/VD laser diode due to the reflected light. The analysis range is as wide as 10mm.
+/-0.1nm wavelength measurement accuracy

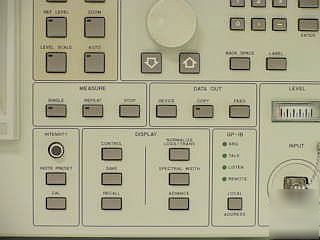

Various aspects have been taken into consideration to make measurement easier. The panel key arrangement, Soft-key menus and basic key function can be specified in the first hierarchy. The Q8344A has a built-in level meter which greatly facilitates adjustment of the measurement light coupling.
Resolution 0.05nm / 850nm (high resolution mode)
0.1nm / 1310nm (high resolution mode)
Wavelength Accuracy 0.1 nm or less
Input Sensitivity -70 dBm to +10 dBm (0.7 m to 1.6 m)
-60 dBm to +10 dBm (0.45 m to 1.7 m)
-45 dBm to +10 dBm (0.35 m to 1.75 m)
Level accuracy 2.0dB (780nm), 0.7dB (1310,1550 nm)
Measurement time 1.5 second or less
Memory function 32 screens ( measurement data) with battery backup
Display Frequency, superimpose, 3-dimentional trend monitor (power,
Smoothing Automatic peak search
External Dimensions 424(W) X 221(H) X 500(D) mm
The retail price for this item is $42000
