Genie s-40 telescopic boom lift manlift aerial platform

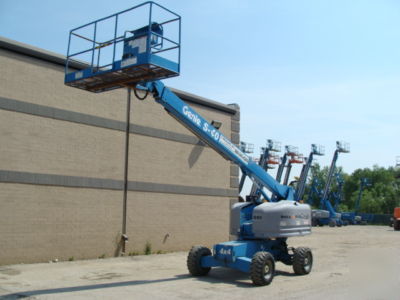

Genie S-40 Telescopic Boom Lift Inspected and Work Ready
Serviced and Inspected by our Genie trained mechanics
Working height maximum 46 ft 14.20 m
Platform height maximum 40 ft 12.20 m
Horizontal reach maximum 31 ft 8 in 9.65 m
Below ground reach 3 ft 2 in .97 m
Platform length - 8 ft model 3 ft .91 m
Platform length - 6 ft model 2 ft 6 in .76 m
Platform width - 8 ft model 8 ft 2.44
Platform width - 6 ft model 6 ft 1.83
Height - stowed 8 ft 2 in 2.49 m
Length - stowed 24 ft 3 in 7.39 m
Width (with standard tires) 7 ft 6 in 2.30 m
Ground clearance - center 1 ft .5 in .32 m
Power source Ford DSG 423 4 cylinder gas/LPG 75 hp
Deutz D2011L03i 3 cylinder diesel 46 hp
Perkins 404D-22 4 cylinder diesel 51 hp
Hydraulic tank capacity 45 gal 170
Turntable rotation 360 continuous
Turntable tailswing 2 ft 10 in .86 m
Drive speed - stowed 4.8 mph 7.7 km/h
Drive speed - raised/extended .68 mph 1.1 km/h
Gradeability - 2WD - stowed** 30%
Gradeability - 4WD - stowed** 40%
Turning radius - inside 6 ft 8 in 2.0 m
Turning radius - outside 15 ft 8 in 4.78 m
