8” x 16”cc tschudin htg hydraulic cylindrical grinder

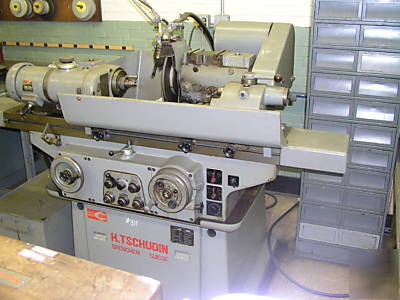

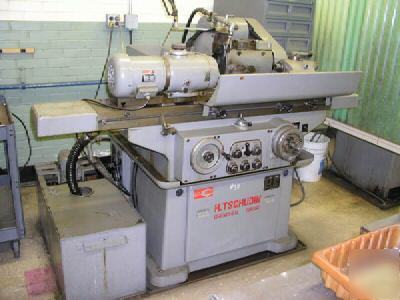

8 x 16 cc TSCHUDIN HTG-400 High Precision Hydraulic Cylindrical Grinder with swing-down internal grinding attachment, S/N 67-1022, New 1967
Max. distance between centers 16
Variable table feeds up to 200 IPM
Table reverse pause up to 4 sec.
(3) Wheel speeds 1500,1700,1900 RPM
Wheel feed .0016 inch/rotation
Stoke for rapid advance & return motions 1 3/16
Max. movement of cross-slide 2
Max. movement of upper slide 4
Swing-down internal grinding attachment
Rapid advance and return of wheel
Infinitely variable adjustment of the in-feed disengaging time
When grinding by plunge-out methods

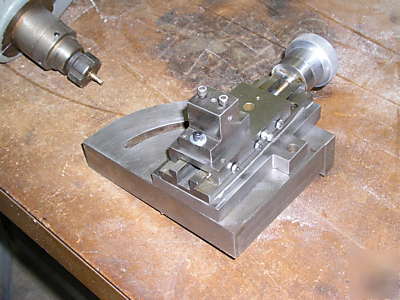

T-Slotted table mounted dresser base ( less dresser)
(3) Wheel mounts with (1) wheel
1.7 HP Internal grinding motor
