Rohde & schwarz CMU200 (gsm/gprs/edge/wcdma B1 - B9)
If you have any question, feel free to contact us (Green Antenna Pte Ltd): ****@green-antenna.com
Rhode & Schwarz CMU200 Universal Radio Communication Tester (SN: 837198/034)
B12 - High-stability OCXO, aging 3.5 10 8/year; oven crystal with highest long-term stability;
B21v14 - Universal signaling unit;
B41 Audio generator and analyzer; includes audio frequency (AF) generator, voltmeter, distortion meter;
B52v14 Internal versatile multimode speech coder/decoder, B21 necessary;
B56v54 WCDMA (3GPP FDD) signaling module for B21 model 14;
B68 Versatile baseband board for WCDMA (3GPP FDD) layer 1, DL and UL, non-signaling;
B96 2nd TX RF channel with full functionality; for generation of small-band signal (GSM BCCH, channel A) or of wideband signal (WCDMA BCCH, channel B);
K20 GSM400 mobile station signaling/non-signaling test software;
K21 GSM900, R-GSM, and E-GSM mobile station signaling/non-signaling test software;
K22 GSM1800 (DCS) mobile station signaling/non-signaling test software;
K23 GSM1900 (PCS) mobile station signaling/non-signaling test software;
K24 GSM850 mobile station signaling/non-signaling test software;
K42 GPRS test software extension for all GSM test software packages;
K43 EGPRS classic (EDGE) signaling test software for all GSM test software packages;
K44 Dual transfer mode: simultaneous CS and PS connection for all GSM packages;
K46 Wideband adaptive multi-rate signaling for GSM and WCDMA (GSM or WCDMA signaling option necessary);
K57 WCDMA signaling 3GPP/FDD/UE, band 7 (B68, B21 model 14 or 54, B56 necessary);
K58 WCDMA signaling 3GPP/FDD/UE, band 8 (B68, B21 model 14 or 54, B56 necessary);
K59 WCDMA signaling 3GPP/FDD/UE, band 9 (B68, B21 model 14 or 54, B56 necessary);
K61 WCDMA (3GPP FDD) band 4, UE test signaling software;
K62 WCDMA (3GPP FDD) band 5, UE test signaling software
K63 WCDMA (3GPP FDD) band 6, UE test signaling software
K65 WCDMA (3GPP FDD) UL user equipment TX test, non-signaling test software;
K66 WCDMA (3GPP FDD) DL generator, non-signaling test software;
K67 WCDMA (3GPP FDD) band 3, UE test signaling software;
K68 WCDMA (3GPP FDD) band 1, UE test signaling software;
K69 WCDMA (3GPP FDD) band 2, UE test signaling software;
Upgrade (U) U65v04 - Measurement DSP module for measurement speed improvement;
Processor FMR5 AMD K6-2 256MB;
Upgrade History: This unit was upgraded with WCDMA in Aug 2007.
Contact us : Green Antenna Pte Ltd at : ****@green-antenna.com

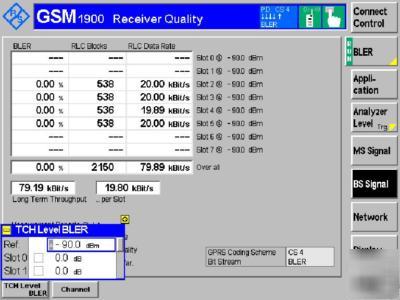

Functionality check : Seller has done basic functionality check on the this equipment with golden unit of cellular phone , The checks include GSM/GPRS/EDGE/WCDMA/HSDPA. Some of check results are screen captured for your information.
Last calibration due date :16th June 2009.
Warranty will be void if warranty sticker is broken/removed/modify or equipment is physically damaged.
