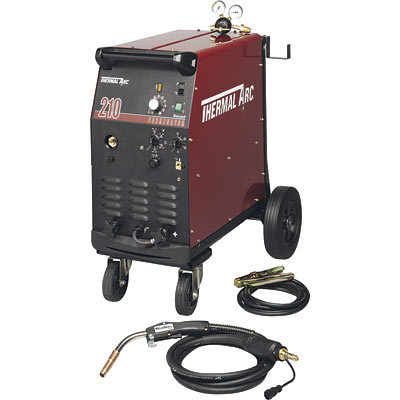

Thermadyne MIG Welder Fabricator 210 -New
The Fabricator 210 features 16 voltage taps, providing a wider operating range of 20 to 250 Amps with an extremely smooth and stable arc characteristic. Unbeatable performance from 24 gauge to 1/2in. (12.7mm) thick in a single pass. Certified ISO 9001 quality system guarantees the manufacture and distribution processes of this welder. Amps: 250, Duty Cycle: 60%, Wire Feed Speed Control: 80-800 IPM, Weld Thickness (in.): 1/2 250 Amp maximum output Dual Gas Valves: Twin gas valves ready for spool gun welding Spool Gun Ready: Factory-fitted run ready with 10-pin receptacle Standard Timer Kit features 2-step, 4-step trigger interlock, spot, dwell and stitch weld timer Simple, quick change (no tools required)polarity and spool gun change-over from the front of the power source 15ft. (4.5m) heavy-duty Tweco WeldSkill MIG gun Overload Protection shuts down the power source to protect the internal electrical components from over heating Heavy-duty transformer is built to last using premium quality 428F materials Drop-down cylinder rack allows for easy cylinder mounting Conveniently located storage box in the wire compartment for all your drive rolls and gun consumable parts Professional heavy-duty, 2-roll drive system features quick change reversible drive rolls (no tools required) and easy-to-set single scaled wire tension knob for smooth repeatable performance Improve wire compartment design allows easy installation of the wire spool Rated Outputs: 176 Amps at 23.6V, 60% Duty Cycle; 210 Amp at 25.3V, 40% Duty Cycle Wire Feed Speed: 80-800 IPM (2-20 m/min)
