Loctite digital control syringe dispenser w foot switch

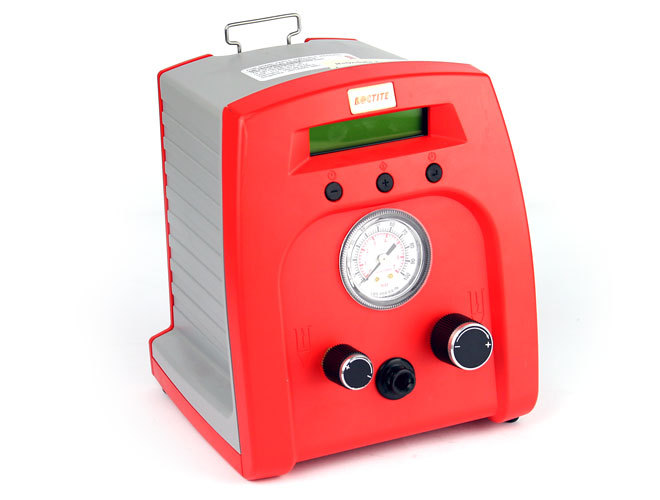

Start Saving with the Loctite Digital Syringe Dispenser. The Loctite Digital Syringe Dispenser is a semi-automatic dispensing system designed to dispense Loctite adhesives and fluids packaged in 3, 5, 10, 30, 55 syringes and 300 ml cartridges. The unit has digital timing control with decimal settings to 0.001 seconds for increased precision over typical pressure-time systems.
Product Condition:Used Very Good
Start Saving with the Loctite Digital Syringe Dispenser. The Loctite Digital Syringe Dispenser is a semi-automatic dispensing system designed to dispense Loctite adhesives and fluids packaged in 3, 5, 10, 30, 55 syringes and 300 ml cartridges. The unit has digital timing control with decimal settings to 0.001 seconds for increased precision over typical pressure-time systems. An adjustable pressure regulator controls a pulse of air, and when used in conjunctions with an airline adapter attached to an adhesive syringe barrel, will provide a controlled dispensed amount of adhesive. The system can be operated in the manual, incremental, or timed (automatic) dispense mode to dispense dots, beads or to fill syringes.
* Vacuum suck-back can effectively control product dripping or stringing.
* Manual, Incremental, or Timed modes allows a choice of adhesive dispensing methods.
* Convenient teach mode to set time required for desired dispense amount or volume.
* Cycle counter is clearly dispensed in the LCD screen.
* Units can be stacked securely to save workspace.
* Plug-and-play capabilities allow for integration to a Robot to make a complete dispensing system.
* Dimensions 6 inches Wide x 6.5 inches Deep x 7 inches High
* Input Voltage: 24 VDC via Universal Power Cord / Adapter (supplied).
* Timer range: 0.020 to 99.999 seconds
* Cycle Modes: Manual, Incremental, or Timed
* Timing Repeat Tolerance: +/- 0.001 %
* Operating Temperature: 32 to 122 Degrees
* Loctite LCD Screen Adjustable Digital Control Syringe Dispenser
