> Coherent innova 90-k kypton ion laser w/power supply
Coherent innova 90-k kypton ion laser w/power supply
Coherent Innova 90-K Kypton Ion Laser w/Power Supply

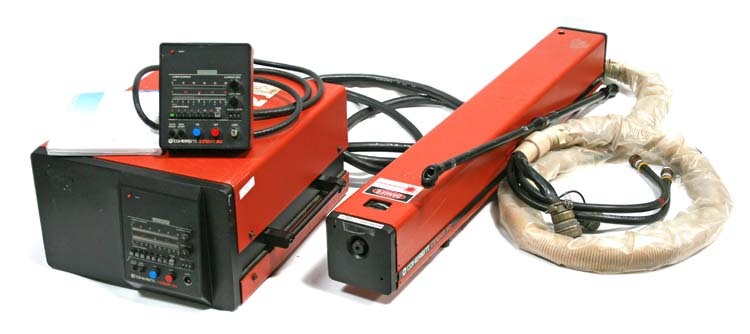

Coherent Innova 90 Laser Head w/ Coherent Innova 90-K Power Supply and Laser Emission Control (0155-435-00)
Power Supply unit needs a new plug wired on.
System Parameter Specifications:
Plasma Tube Cooling: Conductively water cooled
Resonator Construction: Thermally compensated Invar rod structure
Cavity specification: Flat high reflector, long radius output coupler
Output Polarization: 100:1 Electric Vector Vertical
Maximum input current: 45 Amps per phase, 90-K w/ high field on magnet
Maximum Tube Discharge: 45 Amps
Water flow rate, minimum: 8.5 liters/min; 2.2 Gal/min
Water incoming temp, Max.: 30 C (86 F)
Water Pressure: Minimum 1.76 kg/cm2 (25psi); Maximum 3.52 kg/cm2 (50psi)
