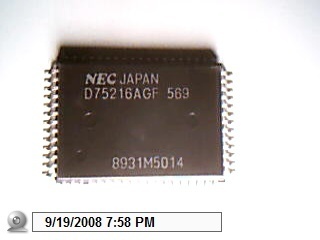

4-bit single-chip microcomputer MPD75216A
http://pdf1.alldatasheet.com/datasheet-pdf/view/7036/NEC/UPD75216AGF.html
mPD75216A is a microcomputer with a CPU capable of 1-, 4-, and 8-bit data processing, ROM, RAM, I/O ports,
a fluorescent display tube controller/driver, a watch timer, a timer/pulse generator capable of outputting 14-bit PWM,
a serial interface and a vectored interrupt function integrated on a single-chip.
mPD75216A is a product with the ROM capacity and the number of display segments extended for the
It uses the VCR, ECR and CD fluorescent display tubes as display devices and is most suitable for applications
requiring the timer/watch function and high-speed interrupt servicing. It can help to provide the unit with many
functions and to decrease performance costs.
Functions are described in detail in the following User s Manual. Be sure to read when carrying out design work.
PD75216A User s Manual: IEM-988
Architecture equal to that of an 8-bit microcomputer
High-speed operation : Minimum instruction execution time : 0.95 ms (when operated at 4.19 MHz)
Instruction execution time variable function realizing a wide range of operating voltages
On-chip large-capacity program memory : 16K bytes
Watch operation with an ultra low current consumption : 5mA TYP. (at the 3 V operation)
On-chip programmable fluorescent display tube controller/driver
14-bit PWM output capability with the voltage synthesizer type electronic tuner
Interrupt function with importance attached to applications
For remote controlled reception
Product with an on-chip PROM : mPD75P216A, mPD75P218 (on-chip EPROM : WQFN package)
