Lot dcs i/o most 8000 ge intelligent platforms PAC8000

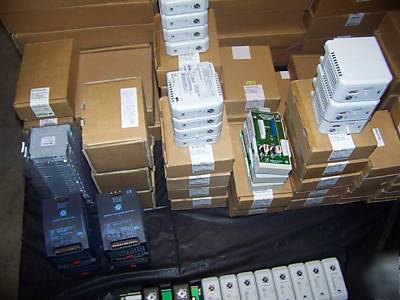

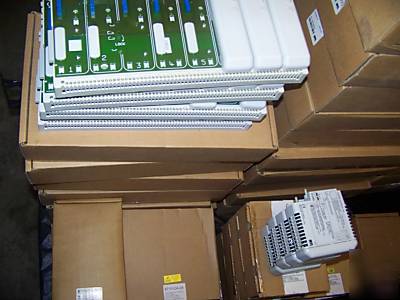

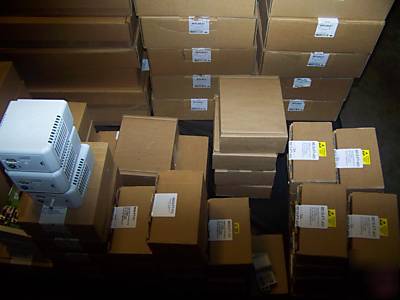

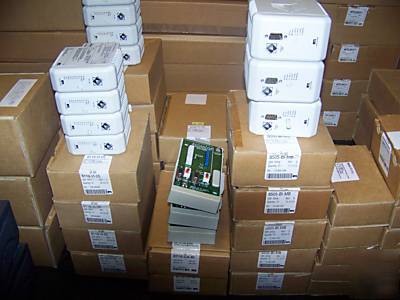

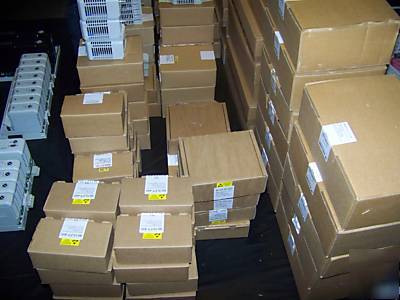

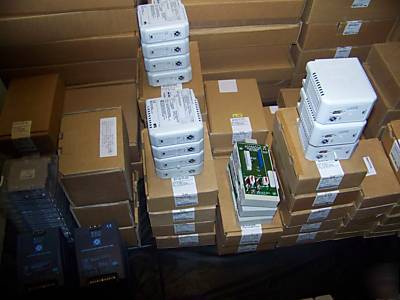

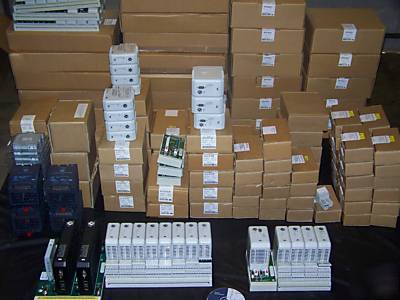

LOT of New & Used GE / MTL Process I/O Control and Data Acquisition System
http:// /products/C79
http:// /products/family/8000-process-io

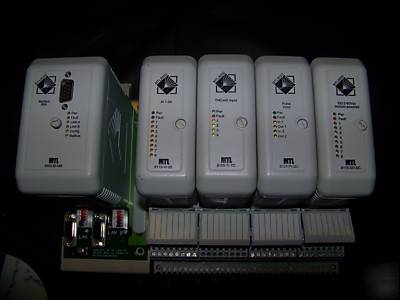

8000 Process I/O uses a Bus Interface Module (BIM) to communicate with the host controller via a local area network (LAN). Different BIMs can be chosen to operate with a range of popular fieldbus protocols. The BIM mounts on a carrier and receives all of its communication and power links from it. The BIM uses the RS485 communications standard. Other alternatives are RS422, by changing switches (where available) on the carrier, or RS232 by fitting an in-line converter. Switch options sometimes offer alternative methods for terminating the LAN. Some BIMs also have a second LAN connection for communications redundancy. HART data pass through is an option on some modules allowing for linkage to instrument management software.
8000 Process I/O is a completely modular distributed I/O solution for both general purpose and rugged area applications. Unlike most process control equipment, it is built to be mounted in the entire spectrum of plant environments, especially the user's most demanding applications.
Distributed Process I/O Features Industrial Ethernet Connectivity
MOST Process I/O is a completely modular distributed I/O solution for both general purpose and hazardous area applications. Unlike most process control equipment, it is built to be mounted in the entire spectrum of plant environments, especially the user's most demanding applications.
MOST Process I/O can be mounted directly in harsh and hazardous applications. It is capable of withstanding the extreme temperature and corrosive environments of process applications, plus take full advantage of HART Instruments.
MOST Process I/O's operating temperature is -40 C to +70 C. The product meets ISA's stringent G3 corrosion resistance requirements for process control equipment and withstands extensive shock and vibration. Process I/O modules are available for virtually any process signal, including analog, thermocouple, RTD, potentiometer, discrete, high-speed counter, frequency and quadrature. And for hazardous applications, it provides the most cost-effective intrinsically safe I/O available by integrating intrinsic safety and sensor signal conditioning in one package.
* Ability to take full advantage of HART instruments
* Industrial Ethernet Connectivity
* MTL Open System Technologies .
The MOST Redundant Control System offers extensive redundancy choices including: controllers, control networks and system power supplies. Unlike some PLC solutions, adding a redundant controller is simple - you simply plug it in next to a running controller and it will automatically upload the configuration from the first controller while the first controller continues to operate.
Our redundant controller pair checks status multiple times through each processing loop enabling the backup controller to continuously monitor the health of the master controller, assuring a rapid and bump-less transfer to the standby controller when required. The MOST control system redundancy model supports on-line configuration and on-line firmware changes, where the updates are shared between controllers in real-time, resulting in an easy-to-use redundant system.
LAN redundancy is provided with MOST Fault Tolerant Ethernet, a Foundation Fieldbus compliant software product. A fully redundant local area network (LAN) can be provided where each controller has two independent redundant Ethernet ports that are connected to two separate independent networks. The controller monitors the networks' health and will switch between networks when a problem is detected.
Redundant power supplies are available to provide power for critical applications. An N+1 redundancy scheme is used for power supply redundancy where N power supplies are backed up by a single power supply, providing a cost-effective redundancy solution.

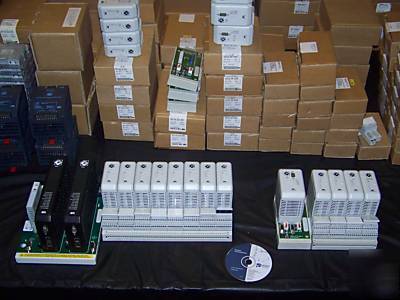

The package deal includes the following items. The package does not include software.

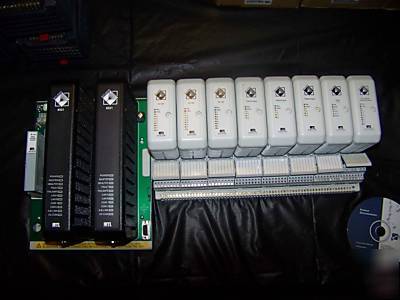

MOST controller carrier, redundant
8 Channel Voltage Input, 1-5Vdc
8 Channel Digital Output, 2-60Vdc
8 Channel Digital Input, 2-60Vdc
MOST Node services power monitor
