> Meister BC10M-3 mill bore dro digital readout 3 scales
Meister BC10M-3 mill bore dro digital readout 3 scales

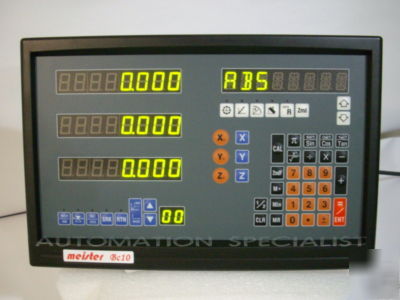

Meister 3-Axis BC10M Digital Readout for Mill w/3 pieces of Linear Scales
Die-cast aluminium display console box.
Mill DRO c/w 3 pieces of linear scales. Travel stroke from 4" to 36" (100 to 900mm).
[ Overall length = Travel + 5 inches]
* Door-to-door delivery (delivery time will depend on your location).
* Mounting swivel arm & dust cover for display box;
* Extruded alum. coolant covers.
* Operation manual (English).
* One year warranty direct from factory.
We are bring to you the Bc10M-3 with a new face plate.
Display box casing material: Die-cast aluminium.
Functions of Meister BC-10M Digital ReadOut:
* "1/2" - value is divided by 2.
* Absolute/Increment co-ordinate interchange
* Recall the last coordinate positions, which is good for repeated work.
* RTN - paused any time to return to normal mode, then continue from where you left off. Put display to "Sleep" during lunch break.
* Mechanic Zero Position Memory- re-establish work-piece zero position after power failure.
* Bolt Hole Circle (Pitch Circle Diameter)
* Set/change scale (+/-) direction
This Grizzly G0463 mill-drill belongs to Don, USA.
THANKS to BOB for these BEAUTIFUL photos of his BRIDGEPORT.
Bob installed the MX3 for the quill on his Bridgeport.
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Resolution selectable: 10um, 5um and 1um.
* Quantizing error: +/- 1 count
* Power Source: AC 110 - 230V, 50/60Hz.
* Material: die-cast aluminium.
* Auto-switching power supply.
* Temperature range: Operating 0 ~ 40 deg C;
* Display: 8-digits green color LED display
* Dimension: 29 x 19 x 10 cm (11 x 7.0 x 4.0 inches)
* Grating pitch: 0.02mm (50LP/min)
* Accuracy: 0.005 mm or 0.0002" (at 20 deg C).
* Ever scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec.
* Output Signal: TTL Square wave signals, TTL.
* Standard 10ft armoured cable.
Meister BC-10L 2 or 3 Axis DRO for Lathe,
Meister BC-10E, 3 Axis DRO for EDM
Glass scales come in these travel length:
Model MS4: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 500, 550, 570, 600, 620, 650, 700, 750, 800, 850, and 900 mm.
(4, 5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36 and 40 inches).
Ultra MS2 for long travel stroke: 1150, 1250, 1350, 1450, 1550, 1650, 1850 and 2000 (80").
Microscale MS5 suitable for tight spaces. Please contact us for dimensional details.
Look at Don's Grizzly G0463 Mill-Lathe. Wonderful job done here . . . Thanks for these photos.
More photos of linear glass on the quill.
Japan, Luxembourg, Malta, Malaysia, Mexico, Netherlands, Norway, New Zealand, Philippines, Poland, Qatar,
Russian, Romania, Scotland, SAF, Slovenia, Slovakia, Serbia & Montenegro, Switzerland, Spain, Sweden, Thailand, UK and USA.
* Factory will take 2 ~ 3 days to process your order.
* Delivery time is about 9 ~ 15 days to major cities; delivery time will varies depending on your location.
* If you do not receive the parcel by the estimated time, please contact me and I will follow up.
* Return: I accept return for refund or exchange. Please read the section "Return Policy".
* We take great care in packing to make sure your DRO system arrive in good condition.
