Lian feng thread rolling machine landis reed grob dies

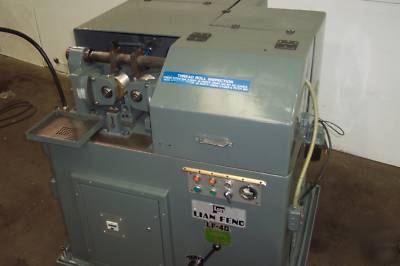

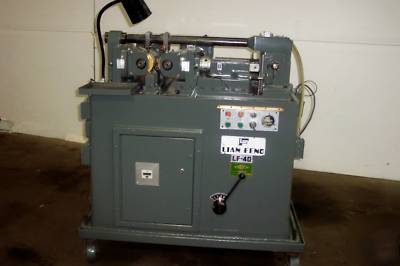

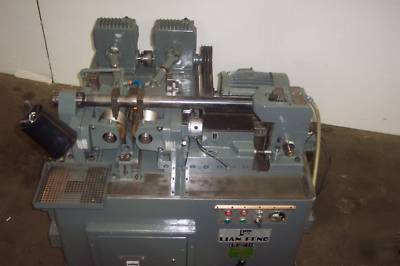

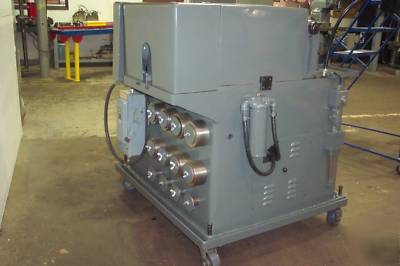

HERE IS A NICE RUNNING LIAN FENG THREAD ROLLING MACHINE. THIS MACHINE CAN BE INSPECTED IN MPLS MN. TO SET UP AN INSPECTION PLEASE CALL JIM @ (***)-931-7974.

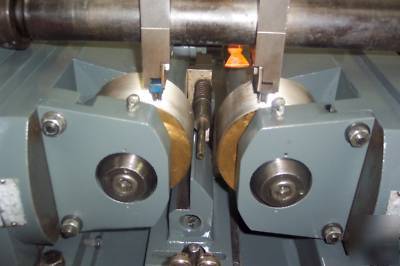

THIS THREAD ROLLER COMES WITH 5 SETS OF THREAD ROLLERS DIES. THE MACHINE HAS BEEN CLEANED PAINTED AND CYCLED.
YOU ARE ABLE TO DO MULTIPLE PARTS OR A CONTINUOUS THREADING APPLICATION. (PASS THRU)
MAX DIA IN FEED.......................................1.57480" - 40MM
MAX DIA THRU FEED..................................0.984251" - 25 MM
MAX LENGTH IN FEED................................2.36220" - 60 MM
MAX LENGTH THRU FEED..........................ANY
TEETH PER INCH RANGE.............................6-28
SPEED RANGE OF DIE..................................30-60 RPM
OUTSIDE DIA OF DIES...................................5.78470" - 147 MM
BORE DIA OF DIES..........................................2.12598 - 54 MM
WIDTH OF DIES.................................................2.75590" - 70 MM
CENTER DISTANCE OF DIE.............................6.69291" - 170 MM
SPINDLES.............................................................5.31496" - 135 MM
MAX ROLLING PRESSURE................................12 TON
DRIVING POWER...................................................7.5 HP
CAM POWER...........................................................3 HP
COOLANT POWER.................................................1/8 HP
WEIGHT APPROX..................................................4400. LBS

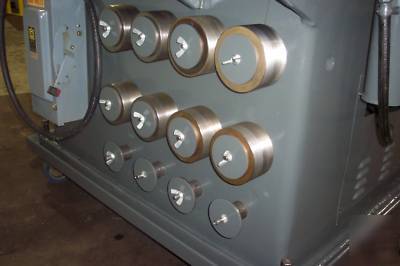

EQUIPPED WITH: 5 SETS OF GROB THREAD ROLLING DIES AND MANUAL.
DIE SIZES: 12 MM X 1-1/4 , 20 MM X 1-1/2, 5/5 X 18P, 3/4 X 16 P, NO 174S 1-12
