Ideal/a.w. sperry adm-88 automotive multimeter tester

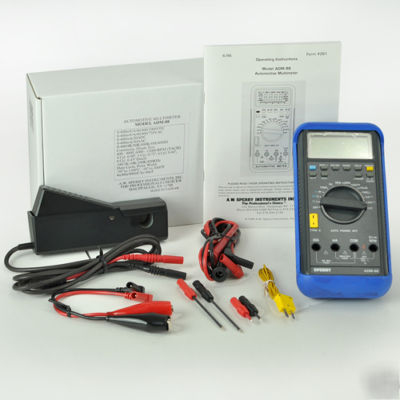

Ideal/A.W. Sperry ADM-88 Automotive Multimeter Tester New Surplus
Model/Part No:ADM88 Our Item ID: 5883
Analog Bargraph: 40 segments with measurements 20 times per second Polarity: Automatic, (-) negative polarity indication Overrange Indication: "4000" Most Significant Digit blinks Meas. Rate: 2/sec. nominal. 1/sec., Capacitance and Frequency mode Operating Environment: 0 to 50 C at <70% R.H. Storage Environment: -20 to 60 C at <80% R.H. Temperature Coefficient: 0.1 x (specified accuracy)/ C (<18 C or >28 C) Power Supply: One (1) 9V battery, (NEDA #1604) Part #B-4 Battery Life: 200 hrs. typical with alkaline battery Fuse: .5A/600V, 6.3 x 25mm Fast Acting Ceramic Part #F-21 20A/600V, 10.3 x 38mm Fast Acting Ceramic (100kA rupture) Part #F-20 Range: 42 Function: 15 DC Voltage Basic Accuracy: 0.5% Range: 400mV/4/40/400/1000V Resolution: 100uV Overload Protection: 1000VDC or 750VAC RMS AC Voltage Range: 400mV/4/40/400/750V DC Voltage Input Impedance: 10M Ohm DC Current Range: 400mA/20A Basic Accuracy: 1% Resolution: 100uA Overload Protection: 0.5A/600V Fuse on 400mA input, 20A/600V Fuse on 20A input AC Current Range: 400mA/20A Basic Accuracy: 1.5% Resolution: 100uA Overload Protection: 0.5A/600V Fuse on 400mA input, 20A/600V Fuse on 20A input Resistance Range: 400/4K/40K/400K/4M/40M Ohm Basic Accuracy: 1% Resolution: 100m Ohm Overload Protection: 500VDC or AC RMS Temperature Range: -50 to 1100 C, -50 to 2000 F Basic Accuracy: 1% Resolution: 1 C, 1 F Capacitance Range: 4n/40n/400nF/4u/40uF Frequency Range: 100/1K/10K/100K/400KHz Basic Accuracy: 0.1% Min. Input Frequency: 10Hz Pulse Width Pulse Width: .1mS - 10.0mS RPM (TACH) RPM (TACH): 600-4000, 6000-12000 RPM Dwell Ranges: 4cyl 0-90 , 5cyl 0-72 , 6cyl 0-60 ,5cyl 0-45 AC Voltage Basic Accuracy: 1.2% Resolution: 100uV Overload Protection: 1000VDC or 750VAC RMS Input Impedance: 10M Ohm
Item Tested?: Tested GoodPhysical Condition: Very Good; Working Condition: Fully Functional3 | 12x 9x9 | 1
