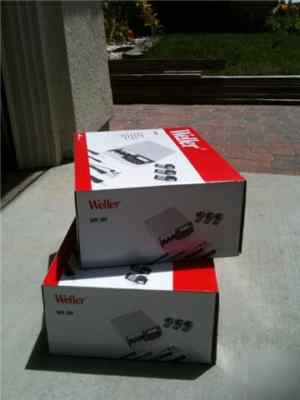

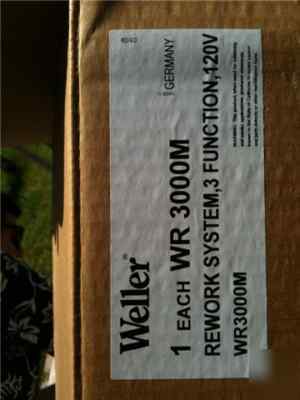

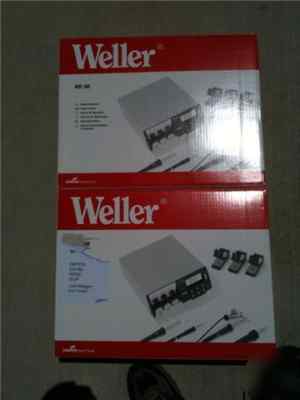

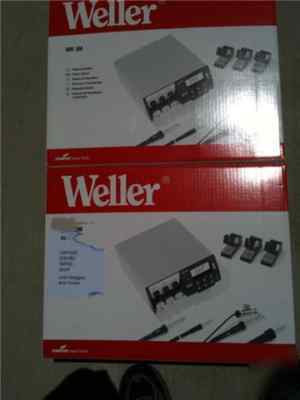

Weller WR3000M soldering rework system
Weller WR3000M Rework StationsORIGINAL PRICE $1900.00 PLUS TAX..HERE PAY LESS AND NO TAX..
* 400 watts of power over 3 independently controlled channels
* Air and vacuum ports allow the use of up to 3 tools simultaneously
* Compatible with high speed micro tools WMRP and WMRT
* New HAP200 200 watt hot air pencil for efficient lead-free rework
* USB port allows the use of included PC software for data logging
* WRK desoldering set allows components removal up to 30 x 30mm
* Large, intuitive LCD display shows critical functions for 3 channels
* Desoldering Pencil(s): DXV80
* Temperature Range: 150 F to 850 F
* Supplied Tip(s): DX112/LTB
* Air Flow Volume: 1 l/min - 15 l/min

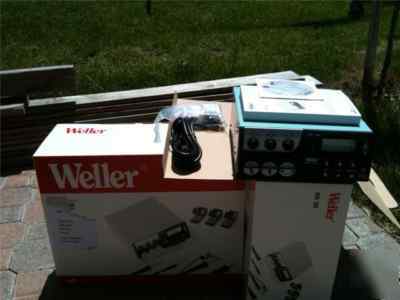

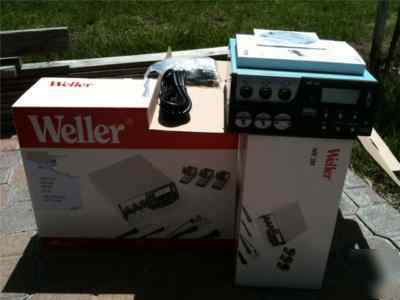

* 1 - WR3M - Self-Contained 3 Function Rework Station

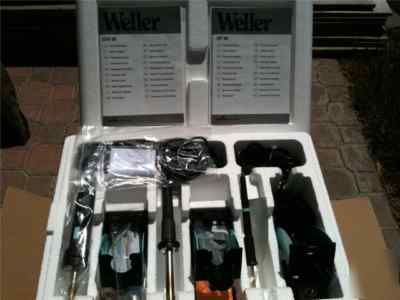

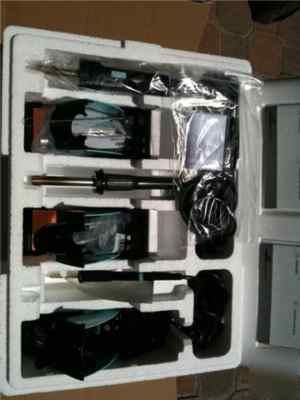

* 1 - DXV80 - Inline Desoldering Pencil
* 1 - WP80 - 80 Watts Soldering Pencil
* 1 - HAP200 - Hot Air Pencil
* HAP200 Hot-air pencil with WDH30 Safety rest
* DXV80 Desoldering iron with WDH40 Safety rest
* WP80 Soldering iron with WDH10T Stop + go Safety rest
* Adapter for HAP200 Hot-air Pencil
* 1.2mm and 3.0mm hot gas nozzles
* 2.3mm and 2.5mm desoldering nozzles
* Desoldering cleaning tools, brush, and spare filters
* Color-coded clips for easy tool identification
Digital Self-Contained 3 Function Rework Station with Tools
WR3M - Rework on the highest level
Weller has taken the rerwork station to the highest level; with the new WR3M.
The versatile repair station is specifically tailored to the needs and requirements of professional repairs to latest-technology electronic sub-assemblies in industrial production engineering and in the repair and laboratory fields.
With automatic tool detection guarantee the simultaneous operation of 3 soldering tools.
Precise temperature control performance at the soldering tip is guaranteed by the digital control electrotechnology together with superior- quality sensor and heat-transfer technology. High-speed measured-value acquisition provides for maximum temperature precision and optimum dynamic temperature performance in load situations.
All Weller High-Speed Micro Tools such as the WMRP micro soldering pencil and the WMRT micro desoldering tweezers can be connected. But also extremely powerful accessories, such as the new HAP200 hot-air pencil, can be easily connected.
The HAP 200 provides a directional hot air flow that is adjustable. Electronic temperature control from 150 F to 999 F. Different nozzles available as accessory. Finger switch controls adjustable pump. (For use with WR 3M only.)

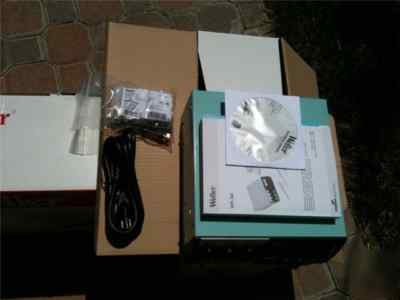

The WR3M is equipped with a mini USB port. The extensive PC software supplied can be used to update the software on the control unit. Software for monitoring, parameterising and data logging is included in the software package.
Innovative special functions such as automatic channel changing, temperature preselection buttons for each channel, Factory Calibration Check.
The newly developed, innovative desoldering system facilitates soldering and desoldering of large SMT components up to 30 x 30 mm. The desoldering system can be connected to the additional vacuum channel (pick up) of the WR 3M.
Components can be easily and safely moved with the aid of the WVP vacuum pipette. The housing is antistatic and the vacuum nipples are available in 2 different sizes. The desoldering system can be connected to the additional vacuum channel (pick up) of the WR 3M.
The Weller Rework System WRS3000 is designed to operate three tools simultaneously. The microprocessor control circuit automatically recognizes each tool connected to the system and activates the operating parameters accordingly.
Tool temperature is controlled with a digital system which can be set at any temperature within the allowable range. For hot air the range is between 150 - 1022 F (65 - 550 C), for soldering and desoldering the range is automatically limited to between 150 - 850 F (65 - 454 C). A pulsing green LED above the tool?s connector indicates that the tool is at the selected temperature.
The microprocessor controls all tool functions. The digital display is used to set tool temperatures, air flow (for Hot Air Pencil), air flow time, temperature off-set, and temperature set-back (for soldering or desoldering tools).
Air flow for the Hot Air Pencil and vacuum for desoldering tools are generated by an internal pump which is activated by either a micro finger switch on the hand tool (tool may be connected to any connector) or by an optional foot switch (tool connected to either connector 1 or 3 located on the rear of the unit).
The WRS3000 comes with a vacuum gauge which is used to monitor the flow of air through the desoldering tool. A higher than normal vacuum reading indicates that the tiplet is clogged and a lower than normal reading indicates that the air filter is clogging and needs to be changed.
The WRS3000 meets all the current government specifications including ESD requirements.
ALSO YOU CAN PICK UP THE ITEM I LIVE IN SAN DIEGO, CA...
