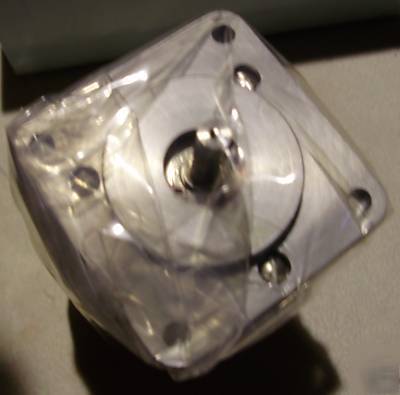

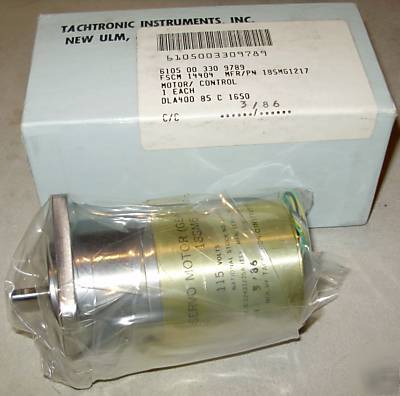

Nos tachtronic 18SM6 gearheaded servo motor 115V 60CYC
OVERALL LENGTH 3.437 INCHES OVERALL WIDTH 1.812 INCHES
SHAFT DIAMETER 0.1875 INCHES NOMINAL SINGLE END
FLATTED PORTION LENGTH 0.3750 INCHES NOMINAL SINGLE END
FLAT DEPTH 0.0100 INCHES NOMINAL SINGLE END
SHAFT ROTATION DIRECTION CLOCKWISE OR COUNTERCLOCKWISE SINGLE END
INCLOSURE FEATURE TOTALLY INCLOSED
WINDING TYPE INDUCTION-SHADED POLE
MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE
GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION INLINE W/ARMATURE SINGLE END
TORQUE RATING AND TYPE 0.43 INCH-OUNCES STALLED
SPEED CONTROL METHOD AND DEVICE TYPE AUTOMATIC MECHANICAL
INCLOSURE SPECIFICATION COMMERCIAL
FEATURES PROVIDED HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION
LENGTH OF SHAFT FROM HOUSING 0.500 INCHES SINGLE END
SHAFT CENTER TO MOUNTING SURFACE DISTANCE 0.906 INCHES SINGLE END
NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING 1.437 INCHES TEMP RATING -55.0 OPERATING DEG CELSIUS AND 55.0 OPERATING DEG CELSIUS AND 50.0 AMBIENT DEG CELSIUS
NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING 1.437 INCHES
CURRENT RATING IN AMPS 0.065 SINGLE OUTPUT
CONNECTION TYPE AND VOLTAGE RATING IN VOLTS 115.0 LINE TO NEUTRAL SINGLE INPUT
GEARED HEAD OUTPUT SHAFT SPEED RATING 1.700 SINGLE REVOLUTIONS PER MINUTE SINGLE END
SHAFT END CHARACTERISTIC A5 SINGLE STYLE SINGLE END
SR-1 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILS22432-35
SR-1 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE 18SM6GEARHEADED TERMINAL TYPE AND QUANTITY 6 WIRE LEAD
