Barber colman 16-16 gear hobber

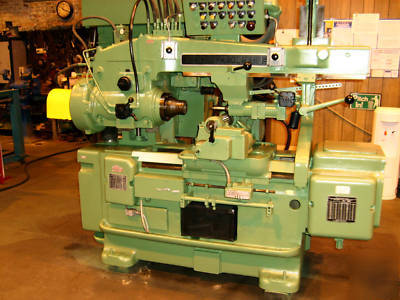

NO. 16-16 BARBER COLMAN UNIVERSAL GEAR HOBBING MACHINE
MAX. PITCH & DIAMETER IN STEEL, ONE CUT 6 D.P. - 4.5" DIA.
DIA. OF HOLE THRU WORK SPINDLE 3-1/8"
MAZ. DISTANCE FACE OF WORK SPINDLE TO TAIL CENTTER 26.5"
MAX. DISTANCE FACE OF WORK SPINDLE TO TAILBRACKET 29"
DISTANCE, C/L OF WORK SPINDLE TO UNDERSIDE OF OVERARM 8"
DISTANCE, C/L OF WORK SPINDLE TO C/L OF HOB SPINDLE 8.75" MAX.
DISTANCE, FACE OF WORK SPINDLE TO C/L OF HOB SPINDLE 19.5" MAX.
MAX. HOB SLIDE SWIVEL ANGLE SETTING 45 DEGREES, L OR R
HOB FEEDS (24) 0.00762" - 0.1125"
(WHEN EQUIPPED WITH SUITABLE GEARS)
FLOOR SPACE, APPROX. 82" L X 38" W
ANTI-FRICTION BEARINGS IN WORK SPINDLE

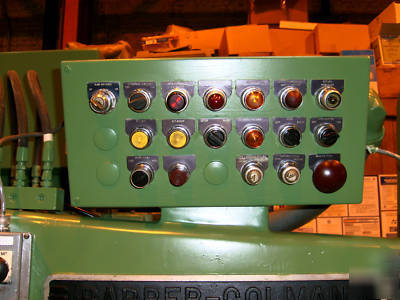

MAIN DRIVE 5 HP MOTOR AND ELECTRICAL CONTROLS
AUTOMATIC WORK CLAMPING CYLINDER
MACHINE HAS BEEN CYCLED & REPAINTED AND IS IN GOOD CONDITION.
