Phytec can ethernet gateway (pair)

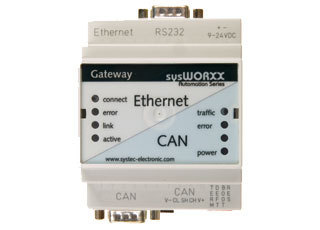

CAN-Ethernet Gateway from Phytec (SysTech Electronic, sysWORXX)
More information below from the Product Homepage:
Internet communication using TCP/IP becomes increasingly important in the industrial control sector. The SYS TEC CAN-Ethernet Gateway provides a ready-to-use solution for transparent connection of CAN networks within existing Ethernet topologies.
CAN messages are transferred transparently, regardless of the protocol used for Ethernet communication. This allows for implementation of the CAN-Ethernet Gateway in different high-layer protocol applications such as CANopen, DeviceNet or SDS.
Access over Ethernet can be achieved via both TCP and UDP. In the process, a CAN-Ethernet Gateway can manage up to 3 active connections simultaneously. This is how you can couple two or more CAN networks and simultaneously access the bus from the PC using a service application.
CAN-Ethernet Gateway is supplied with up to two CAN-bus interfaces. Easy-to-configure transmission-filters enable sensible limitation of the extent of the CAN messages to be transferred for each interface. The CAN-Ethernet Gateway is intended for high data rates. Transfer peaks in the CAN networks are buffered. With very high data traffic, several CAN packets are consolidated for Ethernet transfer. Chronological transparence is ensured using time stamps, which are applied to every CAN message.
Device drivers for Windows operating systems are included as well as a CANAPI2 interface driver that makes it possible to easily use standard CAN software such as ProCANopen , PCANExplorer etc . In addition, the CAN-Ethernet Gateway can be used with all CAN related software offered by SYS TEC.
A variety of CAN Ethernet Gateway configuration options enable flexible adaptation to the target application. The configuration is stored in so-called RC files. A number of RC files for different applications are included on the product CD-ROM as templates for customized settings. The configuration shell is accessible via Telnet or the serial interface (RS 232, null-modem cable included in the package). No special configuration software is required on the host computer.
* Connects multiple CAN systems & PCs via Ethernet (including Internet)
* Supports remote diagnostics and configuration of CAN networks
* CAN transmission speed up to 1 MBit/s
* CAN connector: DB-9 or 5-pin screw clamp
* Ethernet transmission rate up to 10 MBit/s, access via RJ45 socket
* 7 LEDs for status/activity display
* 24 VDC supply voltage, approx. 90 mA current draw
* Dimensions w/o connectors: 70 x 100 x 61 (length x width x height) mm
* Suitable for DIN rail assembly
* Optional with two separate CAN interfaces
* Operating temperature: 0 C to +70 C
