Weinschel 940-114-6 precision continuous vari attenuato

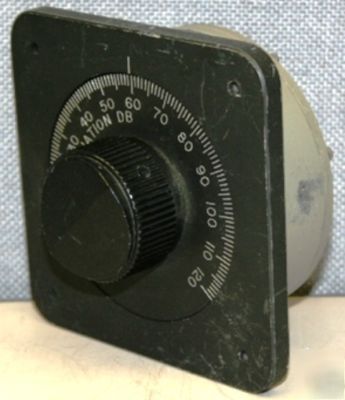

Weinschel 940-114-6 Precision Continuously Variable Attenuator 940 Series dc to 2.0 GHz
Note : The input connector needs to be replaced.
* Wide Variable Attenuation Range - Variable attenuation range of 114 dB with minimum insertion loss at 6 dB.
* Frequency Range: dc to 2.0 GHz
* Incremental Attenuation Range: 114 dB
* Direct Reading Dial Accuracy: 0.25dB or 0.4% @ 1 GHz
* Dial Calibration (in 1 dB increments): 6 to 120 dB
* Resolution of Scale: ~ 270
* Frequency Sensitivity: 0.1 x A x (F-Fd) dB
* 114 = Attenuation Value (dB)
