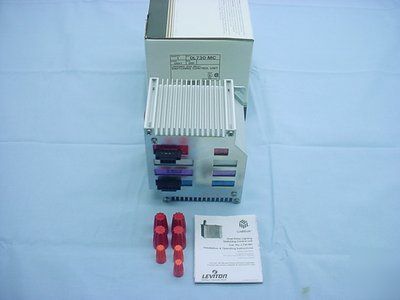

Leviton dual relay switching control unit #0L730-mc
Leviton Lonworks, Dual Relay Switching Control Unit
Leviton 0L730-MC Lonworks dual relay switching control unit. When used with Leviton's Lonworks switches, dimmers and occupancy sensors, it provides control of fluorescent and incandescent lights, as well as motor loads. This enables a building's lighting control system to be totally integrated with other building systems and with devices from multiple manufacturers in a single, interoperable control network. The 0L730-MC has two independent isolated relays to control two separate channels of lighting. Since the relays are isolated, a single unit can be used to control two lighting circuits of the same or different voltages. We have included a scan of the instructions; be sure to click on the photos to enlarge and see all of the instruction pages. Features include:
* 2 independent relays can be used to control separate incandescent, fluorescent or motor loads
* Provides low-voltage power to Leviton's low-voltage switches, dimmers and occupancy sensors; up to 10 such devices can be powered from a single control unit
* Each relay has associated with it a 0-10V fluorescent dimming control output for use with dimming electronic ballasts
* For fluorescent applications, this unit is intended to control rapid-start lamps and ballasts only
* Can provide low voltage power to up to 10 Leviton switches, dimmers and occupancy sensors
Ratings for each relay (2 per device):
* Fluorescent: 2400VA @ 120VAC 60Hz; 5500VA @ 277VAC 60Hz; 0-10 VDC dimming signal, 20 ballasts minimum
* Incandescent: 1800W @ 120VAC 60Hz
* Motor: 1 HP @ 120VAC; 2HP @ 250VAC
