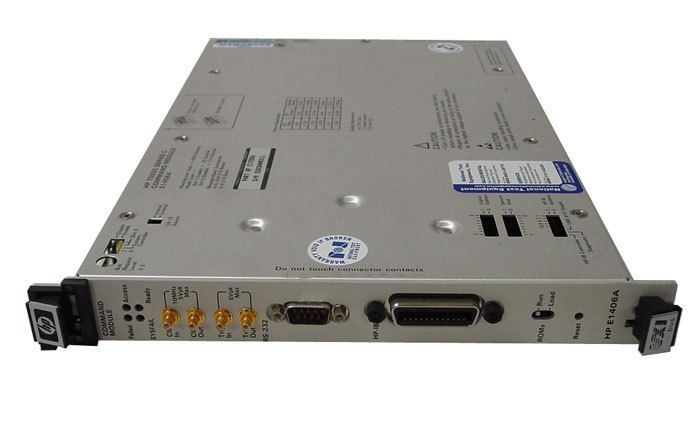

HP Agilent E1406A - HP-IB Command Module
The E1406A Command Module is a C-size, 1-slot VXI message-based commander that provides Slot 0 and Resource Manager function. It can act as a VMEbus system controller and GPIB (IEEE-488)-to-VXIbus interface device for transparently communicating with any manufacturers message-based VXI modules. The E1406A Command Module has FLASH memory for downloadable drivers, so you can program Agilent register-based devices using the high-level SCPI programming language. It also translates SCPI commands for register-based instruments and therefore, makes these VXI devices as easy to program as message-based instruments. This command module also includes a MXIbus Resource Manager for VXIbus extensions. This allows you to maintain high-throughput performance in multiple mainframe systems. With its flexible triggering and clock interfacing, you can synchronize the VXI backplane 10 MHz clock to an external TTL signal.
* 1-Slot, C-size, message-based commander
* GPIB, RS-232, Slot 0, and Resource Manager
* MXIbus protocol support for high throughput
* Agilent VIC, VXI Installation Consultant-fast/easy set-up
* Easy to program as message-based instruments
Available Documents:
* Data Sheet (04/04)
* Users Guide (04/97)
