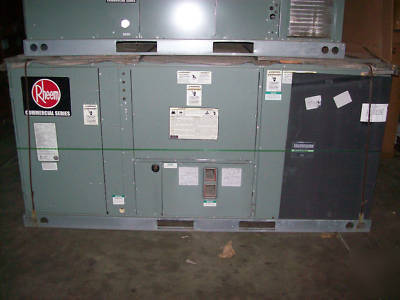

7.5 ton gas package unit rheem
It was manufactured in December 2005. Most of the warranty is still valid on this.
The heat exchanger has 7-8 years left and the compressor has 3-4 years left.
It is 460 VOLT, 3 Phase. It is still in very good condition because it has been kept indoors
during storage. It has 90,000 BTU cooling (7.5 ton) with 150,000 BTU heating.
and if you have a business with a freight dock and/or fork lift.
Model Number is: RKKB-A090DL15E
Complete factory charged, wired and run tested.
Scroll compressors with internal line break overload and highpressure
Dual stage compressor on all models.
Cap tube refrigerant metering system on each circuit.
Optional High Pressure and Low Pressure/Loss of charge
protection standard on all models.
Single slab, single pass designed evaporator coil facilitate
easy cleaning for maintained high efficiencies.
Cooling operation up to 125 degree F ambient.
Foil faced insulation encapsulated throughout entire unit
minimizes airborne fibers from the air stream.
Easily removable filter, control, blower, gas heat, and
compressor access panels permits prompt service.
Slide Out Indoor fan assembly for added service convenience.
Powder Paint Finish meets ASTMB117 steel coated on each
side for maximum protection. G90 galvanized.
One piece top cover and one piece base pan with drawn
supply and return opening for superior water management.
Single point electrical and gas connections.
Internally sloped condensate pan conforms to ASHRAE 62
High performance belt drive motor with variable pitch pulleys
Permanently lubricated evaporator, condenser and gas heat
Condenser motors are internally protected, totally enclosed
2 inch filter standard with slide out design.
Two stage gas valve, direct spark ignition, and induced draft
for efficiency and reliability.
Tubular heat exchange for long life and induced draft for
Solid state furnace control with on board diagnostics.
24 volt control system with resettable circuit breakers.
Copper tube/Aluminum Fin coils (the 121/2 ton uses micro
