Hp 8080A pulse generator mainfame w/ 8081A 8083A 8084A

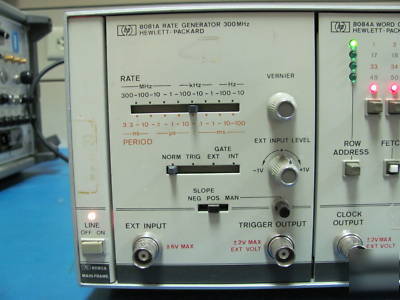

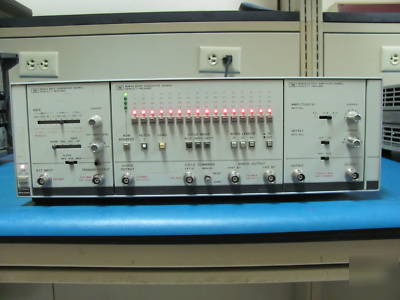

HP 8080A Pulse Generator Mainframe with units (1) HP 8081A Rate Generator 300 MHz, (1) HP 8084A Word Generator 300 MHz, (1) HP 8083A Output Amplifier 300 MHz.
HP 8080A Pulse Generator Mainframe Specifications:
http://cp.literature.agilent.com/litweb/pdf/08080-90002.pdf
HP 8081A Rate Generator Specifications:
Repetition Rate: 10 Hz to 300 MHz in 8 ranges
Period Jitter: ~ 0.1 % 50 psec
Transition Time: <1.2 ns (10% to 90%)
http://cp.literature.agilent.com/litweb/pdf/08081-90001.pdf

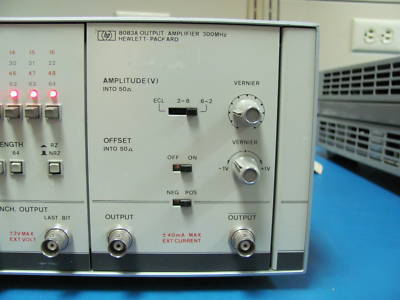

HP 8083A Output Amplifier Specifications:
Transition Time: <3 ns (10% to 90%)
Signal Levels: high; 0V +- 50mV
Transition Time: < 800 ps (10% to 90%)
http://cp.literature.agilent.com/litweb/pdf/08083-90001.pdf

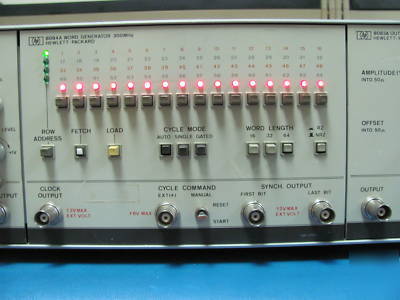

HP 8084A Word Generator 300 MHz Specifications:
http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&ckey=8084A:epsg:pro&nid=-536900196.536900539.00&id=8084A:epsg:pro&pselect=SR.General
The mainframe and all subunits are in excellent shape physically and cosmetically. All led's and dials function properly. The system was tested using a Tektronix TDS380 Oscilloscope; it produces the specified waveforms all the way up to 300 MHz.
