Vacuum furnace - still connected to power - working

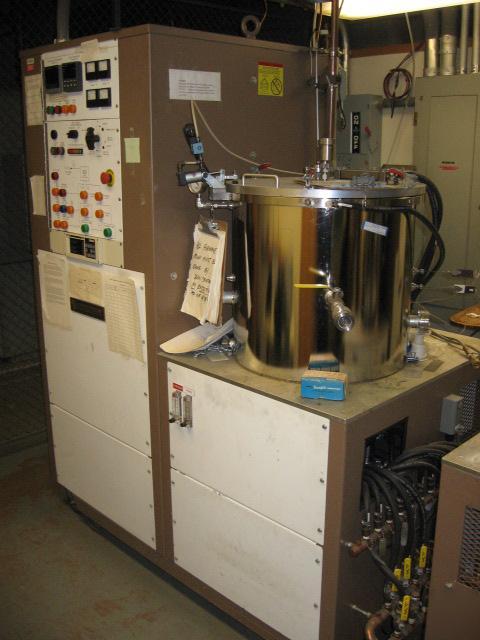

Other items for sale MRF Hydrogen Vacuum Furnace: 1800c, 9"x9"x6" HZ, Video
This system is in excellent condition. It is still under power and fully opperational. Let me know if you would like to view.
Hot Zone: 9" x 9" x 6" high (useable),
11" x 11" x 10" high Actual Size,
Tungsten Mesh Heating elements with Multiple layers of Tungsten & Molybdenum Heat Sheilds.
Vacuum: 10-6 Torr, High Vacuum
VRC 4" electro-pnumatic high vacuum gate valve
Varian 4" cold trap (refrigerant cooled)
Electro-Pnumatic diffusion pump foreline and chamber roughing valves
Varian SenTORR cold cathode gage controller and sensors
Allen Bradley SLC 500 programmable controller to control gas / vacuum system logic
Gas System: Hydrogen and innert gas
All safety related Hydrogen Opperating equipment and valves
Hydrogen Explosion escape port
type K TC to monitor hydrogen burnoff
Controll: Honeywell UDC-2000 Overtemp Controller, Eurotherm 903P Programable Controller, Type C TC
Power: 50 KVA, 208v/3ph/60hz, 175 amp max
Gas: Ar bottle supply @ 20 LPM and 40 PSIG, Hydrogen bottle @ 20 LPM and 40 PSIG
Performance: 1800 c in vacuum at 10-6 torr vacuum range and 1600 c in hydrogen gas.
Chamber: Top load, 304 SS design, with 4 water cooled power feeds, top and bottom water cooled plates to protect covers.
All manuals come with this system. Was used in a local research facility.
Just what you need if you are looking for a moveable, research vacuum furnace.
