Lot of 4- phoenix contact sensor/actuator cable 1681619
Lot of 4- Phoenix Contact Sensor/Actuator Cable 1681619

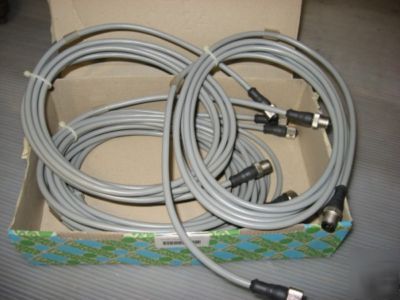

* 4 new cables made be Phoenix contact
* Manufacturer: Phoenix contact
* Manufacturer Part Number: 1681619
* Marked on box: AC-5PM12MS 3.0-PRM12FS
* Marked on Cable: 3.0M PUR 5x0.34 46/00

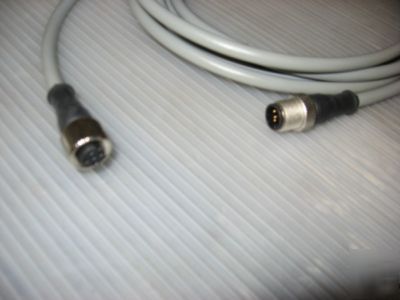

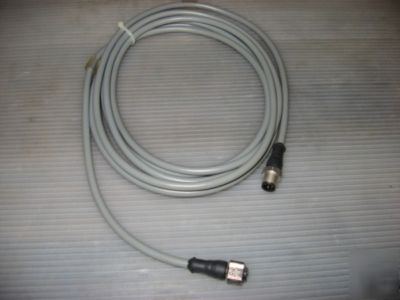

SAC-5P-M12MS/3,0-PUR/M12FS - 1681619 - Sensor/Actuator cable
Sensor/Actuator cable, 5-position, PUR, halogen-free, Black-gray RAL 7021, Plug, straight M12, A-coded, on Socket, straight M12, A-coded, Cable length: 3 m
Stripping length of the free conductor end
Ambient temperature (operation)
-25 C ... 90 C (plug/socket)
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
Conductor structure, signal line
Core diameter including insulation
brown, blue, white, black, green/yellow
-40 C ... 80 C (cable, fixed installation)
-5 C ... 80 C (cable, flexible installation)
Flexible cable conduit capable
Free of substances which would hinder coating with paint or varnish
complying with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
