Fluke dsp-4000 CAT6 DSP4000 FTA410 mm fiber dsp-FTA410
* (2) DSP-FTA-410 Fiber Adapters
* Hard Copy User Manual For FTA-410

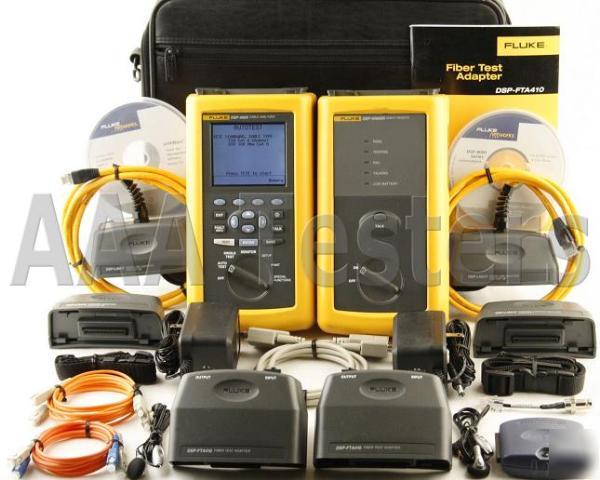

Fluke Networks DSP-4000 CAT5 / CAT5e / CAT6 Digital Cable Analyzer with Fluke Networks DSP-FTA410 Multimode 850nm / 1300nm Fiber Module Set
We also have SM & Fiber Modules available for this model and others!
Fluke Networks DSP-4000 Digital Cable Analyzer
Test, certify and document fiber and copper with DSP Series
Superior diagnostics make troubleshooting fast and easy
Universal Permanent Link Adapter delivers more passes and eliminates false failures
Powerful Fiber Test Adapters perform dual-fiber, dual-wavelength fiber certification
Easily manage and document copper and fiber links with new LinkWare Software
Certify Cat 5e/6 cabling systems with DSP-4000 CableAnalyzer Series
The DSP-4000 CableAnalyzer Series for several years has occupied the top level in the industry of cabling certification tools. The testers in this series provide accurate testing of Cat 5e and Cat 6 twisted-pair cabling as well as loss testing of fiber optic cabling.
The DSP-4000 Series is based on an exclusive digital signal processing test platform that provides a complete and accurate solution for certifying, documenting and troubleshooting twisted-pair copper cabling links from Cat 3 through Cat 6. Three sets of fiber optic test adapters can be combined with any of the DSP-4000 Series testers to provide automatic optical loss testing for horizontal or backbone fiber cabling. And like all Fluke Networks instruments, the DSP-4000 series products are built rugged to withstand drops and other mishaps that occur in today's network installation environments.
Fluke Networks' Fiber Test Kit measures power or power loss in optical fiber links used in premise wiring and LAN networks.
You can record and store any combination of copper or fiber optic Autotest reports with the Fluke DSP-4000 tester. Each test report can be assigned a unique, user-definable label, and can be downloaded to a PC or printed directly from the cable tester to a serial printer.
Test reports contain wavelength, measured loss, loss limit, test direction and reference level. The fiber test results may be saved in the tester's memory using a cable name of up to 18 characters long.
The DSP-FTA410 Fiber Test Adapter lets you use a DSP-4000 CableAnalyzer test tool to test and certify fiber optic cable installations. The fiber test adapter includes the following features:
* Autotest function measures optical power loss (at 850 nm and 1300 nm) and length on dual-fiber multimode links.
