> Fluke 718 100G pressure calibrator msrp 1995 usd

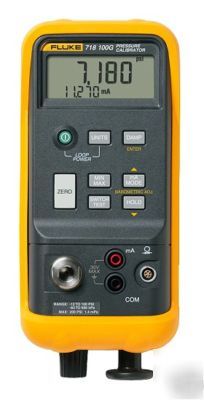

Fluke 718 100G pressure calibrator msrp 1995 usd
* Protective Yellow Holster with test lead storage
* Test Leads and Alligator Clips
- Calibration services are $54.99 USD A FREE Service to you
The Fluke 710 Series Process Calibrators offer a clear new choice in single-function calibrators.
The 100G ranges from -12 PSI to 100 PSI
(-850 mbar to 7 bar, -85 to 689.48 kPa)
These hand-held calibrators deliver outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 710s are easy to use. Each calibrator is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
Each calibrator will measure or source one parameter at a time. Additionally, the 713, 716, 717 and 718 will simultaneously measure pressure and mA. The 715, 716, 717 and 718 will deliver 24 volt loop supply while measuring mA.
The newest members of the 710 family, the 716 717 and 718 Pressure Calibrators present cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. These new calibrators connect with any of the 29 Fluke 700Pxx Pressure Modules to address a wide variety of gage, differential, absolute, vacuum, and dual (compound) pressure applications. The Fluke 716 serves as a readout device for Pressure Modules. Fluke 717 and 718 can address the majority of applications with their internal sensors, or can connect to a Pressure Module to address more varied applications.
* Temperature from Thermocouple output
* Pressure, 0.05% of full scale
* Temperature from RTD output
* Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
* Pressure 0.05% of full scale with internal 30 psig sensor
* Pressure 0.05% of full scale with internal 100 psig sensor
The Fluke 718 Pressure Calibrator offers a new approach to pressure calibration. A complete, self-contained calibration solution
* Measure temperature from RTD output
* Operates with seven types of RTDs
* Measure additional RTDs using Ohms measurement function
* Simulate additional RTDs using Ohms source function
* Four shrouded banana jacks
* Compatible with Rosemount pulsed RTD transmitters
-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
0.0001 psi, 0.001 mbar, 0.0001 kPa
-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
Fluke 718 series via using 700 Series Pressure Modules
29 pressure modules, 0 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
To 0.025 % of full span, per pressure module specs
media compatibility per pressure module specs
Fluke 718 series via built in pump
-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 C), in H20 (20 C), cm H20 (4 C), cm H20 (20 C), bar, mbar, kPa, inHg, mmHg, kg/cm
Note: Drive; 20 mA into 1000 for battery > 6.8V; 700 for battery 5.8 to 6.8 V
95 % (10 C to 30 C); 75 % (30 C to 40 C); 45 % (40 C to 50 C); 35 % (50 C to 55 C)
EN50082-1: 1992 and EN55022: 1994 Class B
216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)
9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
4 to 20 hours typical, depending on functions used
Three years (one year on pressure pump in Fluke 718)
LCD, 5 digit pressure and current simultaneous
For use with non-corrosive gasses
