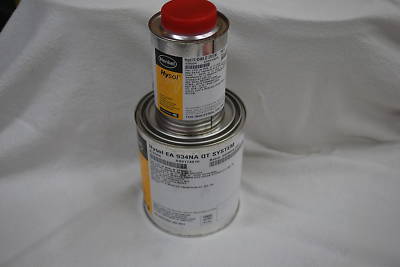

Epoxy paste adhesive henkel hysol EA934NA 1 quart kit
EA 934NA List Price for this High Quality Epoxy is $180.75 per Quart Kit
Hysol EA 934NA is a two-component thixotropic paste adhesive, which cures at room temperature and possesses superior strength to 300 F/149 C and higher. Its thixotropic nature and good compressive strength make it ideal for potting, filling and fairing, as well as for shim applications. Hysol EA 934NA is qualified to MMM-A-132 Type 1, Class 3 with a room temperature cure.
Room Temperature Cure, Good Gap Filler, 300 F/149 C Performance, Potting Material, MMM-A-132 Qualified, Develops Strength Rapidly
Color Gray Amber Gray,Viscosity @ 77 F 3500 9000 Poise 10 - 30 Poise 800 Poise,Brookfield, HBT Spdl 7 @ 20 rpm Spdl 1 @ 20 rpm Spdl 6 @ 20 rpm Viscosity @ 25 C 350 - 900 Pa S 1 - 3 Pa S 80 Pa S, Brookfield, HBT Spdl 7 @ 2.1 rad/s Spdl 1 @ 2.1 rad/s Spdl 6 @ 2.1 rad/s, Density (g/ml) 1.5 0.96 1.36.
Mixing - This product requires mixing two components together just prior to application to the parts to be bonded. Complete mixing is necessary. The temperature of the separate components prior to mixing is not critical, but should be close to room temperature (77 F/25 C).
By Weight 100 33, Note: Volume measurement is not recommended for structural applications unless special precautions are taken to assure proper ratios.
(450 g mass) 40 minutes @ 77 F/25 C Method - ASTM D2471 in water bath.
Mixing - Combine Part A and Part B in the correct ratio and mix thoroughly. THIS IS IMPORTANT! Heat buildup during or after mixing is normal. Do not mix quantities greater than 1 pound as dangerous heat build up can occur causing uncontrolled decomposition of the mixed adhesive. TOXIC FUMES CANOCCUR, RESULTING IN PERSONAL INJURY. Mixing smaller quantities will minimize the heat buildup.
- This adhesive may be cured for 5 to 7 days @ 77 F/25 C to achieve normal performance. Accelerated cures up to 200 F/93 C (for small masses only) may be used as an alternative. For example, 1 hour @ 200 F/93 C will give complete cure.
- It is important to remove excess adhesive from the work area and application equipment before it hardens. Denatured alcohol and many common industrial solvents are suitable for removing uncured adhesive. Consult your supplier's information pertaining to the safe and proper use of solvents.
Tensile lap shear strength tested per ASTM D1002 after curing for 7 days @ 90 F/32 C. Adherends are 2024-T3 bare aluminum treated with phosphoric acid anodized per ASTM D3933.
psi MPa -67/-55 2,800 19.3, 77/25 3,100 21.4, 180/82 1,800 12.4, 300/149 1,000 6.9, 500/260 450 3.1
77 F/25 C Water - 30 days 3,500 24.1, Isopropyl Alcohol - 7 days 3,300 22.7, Hydraulic Oil - 7 days 3,500 24.1, JP-4 Fuel - 7 days 3,500 24.1,Salt Spray - 105 F/41 C - 30 days 3,300 22.7
*All exposures tested @ 77 F/25 C
The above values are typical results under ideal conditions. To establish certification values, please refer to the Henkel Aerospace Specification which defines quality control test values, methods and procedures.
Service temperature is defined as that temperature at which this adhesive still retains 1000 psi/6.9 MPa using test method ASTM D1002 and is approximately 300 F/149 C.
This data sheet provides users with typical properties obtained from this adhesive. These values are not meant to be used to develop aerospace QC acceptance testing. Users interested in establishing values and tests for routine QC acceptance should request our internal specification (DAS), which provides detail test methods and values used to certify this adhesive.
- tested using 0.125 inch/3.18 mm castings per ASTM D638., Tensile Strength @ 77 F/25 C 5,800 psi 40.0 MPa, Tensile Modulus @ 77 F/25 C 550 ksi 3790 GPa
Elongation at Break, @ 77 F/25 C 1.2%, Shore D Hardness @ 77 F/25 C 85, Tg dry, (Cure 7 days @ 77 F/25 C) 159 F 71 C, (Cure 1 hour @ 200 F/93 C) 264 F 129 C
- tested using 0.5 inch/12.7 mm castings per ASTM D695., Compressive Strength, @ 77 F/25 C (ultimate), 9,500 psi 65.5 MPa, Compressive Strength
@ 300 F/149 C (ultimate), 2,500 psi 17.2 MPa
- tested per ASTM D149, D150., Dielectric Constant (1KHz, 77 F/25 C) 7.24, Dissipation Factor (1KHz, 77 F/25 C) 0.028
The information supplied in this document is for guidance only and should not be construed as a warranty. All implied warranties are expressly disclaimed, including without limitation any warranty of merchantability and fitness for use. Allusers of the materials are responsible for assuring that it is suitable for their needs, environmental and use.
