> Allen bradley 1398-ddm-030X ultra 200 servo drive
Allen bradley 1398-ddm-030X ultra 200 servo drive

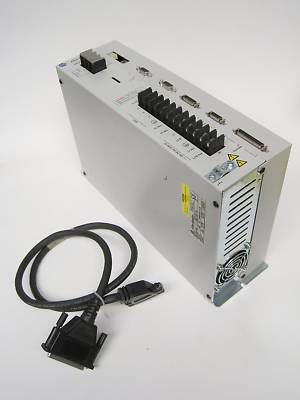

Item Title: Ultra 200 Digital Servo Drive

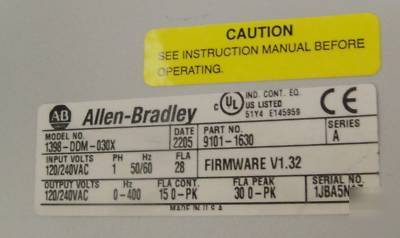

Model Number: 1398-DDM-030X ser A
ULTRA 200 positioning drives deliver full-featured flexibility and impressive power and performance. Each ULTRA 200 drive provides:
* 115 to 230V AC single phase input (single phase or three phase for the 75 amp version, three phase only for the 150 amp version)
* Phase-to-phase and phase-to-ground short circuit protection
* An internal resistive shunt
* A built-in auxiliary AC input (to power logic only)
* Built-in power supplies (including 24V I/O supply) no external source required (except AC line)
* An DC bus available externally for power leveling or for use of shared power supplies
* Advanced multi-processor design for leading-edge velocity loop bandwidth, fully digital current, velocity, and position loops
* Large-scale integration with custom ASICs and IPMs for performance and reliability
* A 16-bit A/D convertor for precise velocity command input
* Flash memory for simple field upgrades
* A personality module to store setup parameters and simplify drive replacement
* Reduced component count for reliability
* Internally-shielded filters for electromagnetic compatibility (EMC)
* Four dedicated I/O plus eight user-selectable, optically isolated digital inputs and outputs (sourcing/active high):
* Four user-selectable inputs
* Four user-selectable outputs
* Two analog inputs for external current limit
* Two analog outputs for variable monitoring or torque sharing 12 ULTRA Series
* Two serial connectors to simplify RS-485 multi-dropping and host communications
* Indexing (absolute with the Homing feature, incremental, or registration)
* 10 Volt analog interface position, velocity, or torque control
* Presets (from one to eight binary inputs) torque or velocity control
* Quadrature encoder digital interface electronic gearing position follower
* Step/Direction digital interface position control
* CW/CCW (step up/step down) interface position control
* Operating mode override alternate movement interface
* Host command digital interface
* Internal continuous output current 15A
* Internal continuous output power 3.0 kW
* Internal continuous shunt power 50W
* Internal peak shunt power 4.5 kW
* Continuous input current 28A
* Input voltage 100 to 240V AC RMS nominal (88 to 265 Volts)
Please refer to the manaual below for complete specifications (starting on page 11)
Product Link (User Manual): Ultra Series
Condition: Used in Very Good Condition. Some light scuff marks on the case. 9101-1369-003 J1 Cable and Product Data Manual are both included.
