Uhf receiver rf modulator circuit card military radio
UHF RECEIVER RF MODULATOR CIRCUIT CARD MILITARY RADIO

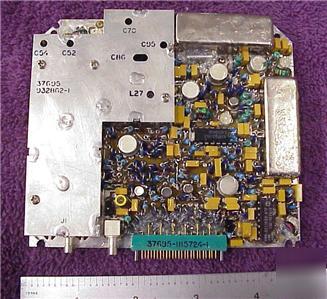

ARC-187 RECEIVER RF / MODULATOR CIRCUIT BOARDS
Removed from ARC187 for some TCTO.
These two circuit boards were the heart of the transceiver.
Mostly descrete components with some surface mount.
The board with the shield looks to be the receiver front end and the other board may be the exciter board. Each board is 4.5x4.2x0.8, 2 lbs sh.
