> Galil dmc-1720 2 axis isa optima motional control card

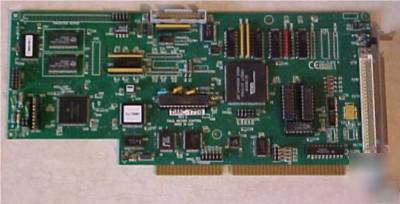

Galil dmc-1720 2 axis isa optima motional control card
The DMC-1720 ISA motion controller is a member of the Optima Series, Galil's prior-generation, multi-axis motion controllers. The DMC-1720 controller accommodates 2-axis formats and allows control of step or servo motors on any combination of 2 axes. Any mode of motion can be programmed including linear and circular interpolation, contouring, electronic gearing and ecam
* Accepts up to 12 MHz encoder frequencies for servos and outputs pulses up to 3 MHz for steppers
* PID compensation with velocity and acceleration feedforward, integration limits, notch filter and low-pass filter
* Modes of motion include jogging, point-to-point positioning, contouring, linear and circular interpolation, electronic gearing and ECAM
