> Fluke 105 100MHZ scopemeter series ii with dual channel

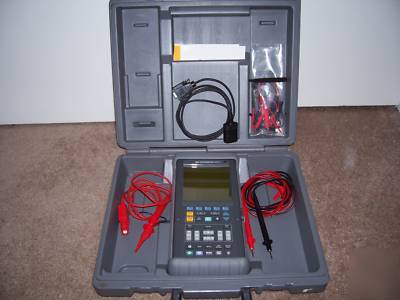

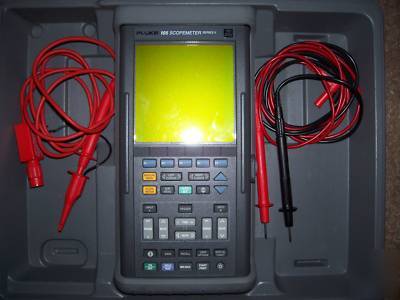

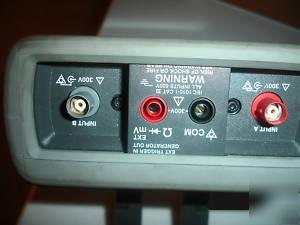

Fluke 105 100MHZ scopemeter series ii with dual channel
This meter is like new used very little with no damage, looks new.
Unbelievable test tool, too many functions to list
* High-Contrast, Backlit Display
* Automatic Setup Measurements
* Waveform and Screen image transfers to a PC and Remote Operation
* Screen Image Transfers to a PC
* Signal Generator/Component Tester Output
* On-line Help (information)
* Uses standard "C" bateries or NiCad Batteries
* Optically Isolated RS-232C Interface for Printer and PC (PM 9080 cable required)
* 5 MHz DMM Measurements & Full Waveform
* Min Max TrendPlot with New Time and Date Stamp
* Advanced Measurements: Temp., Current, RPM, % Duty, Pulse Width, dB, Hz, % Scale, Amps, Watts, and more
* Maximum Repetitive Sample Rate: 5 GS/s
* Maximum Time Resolution: 200 ps
* Video Triggering, NTSC, PAL. SECAM, & Hi Resolution Video (l& field selectable)
* ScopeRecord in 30k Memory; (Time base 20 ms/div)
* Glitch Capture down to 40 ns
* Time/Division: 5 ns/div to 60 sec/div
* Volts/Division: 1 mV/div to 100 V/div
* Pre & Post Trigger: -20 to +640 div
* Trigger Delay: Cycles, Event, Time & Zoom
* Gray Scale Waveform Display
* Waveform Mathematics: Integrate, +, -, filter
* Measure Amps with Optional Current Clamps
Please contact us for more information
