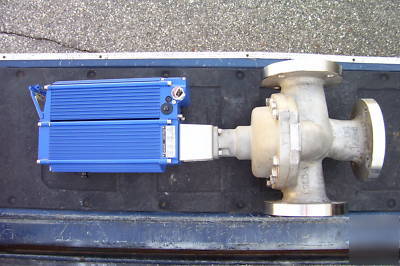

Emech 3"3PORT ceramic disc stainless mixing valve w/act
3" 3 Port Ceramic Shear Action Disc Valve
Utlising ceramic shear action disc technology the valve provides tight shut-off and high pressure differential capability. The extremely hard nature of ceramic produces outstanding resistance to wear any cavitation damage compared to conventional elastomer and plastic seated valves, minimising seal replacement and downtime.
Temperature solutions from Emech valve/actuator include their "swirl-mix" that incorporates a temp. probe at the point of mix. The result is reduced "call time" and fast and accurate delivery of tempered water which can be used in many Industrial applications such as a brewery, dairy, tanneries, meat processing, bakeries, wine manufacturing, etc. Thinking green, there is not a better mixing valve on the market for industry. Thanks
2)Flow Co-efficient 144. The flow of 2 ports open is 778 gpm@29 psi dp. Minimum mixing flow of valve is 53 gpm.

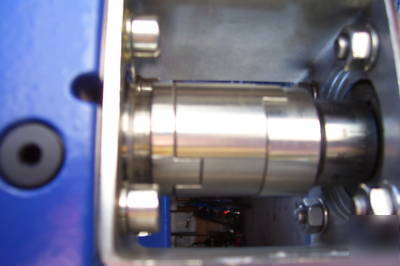

3)Acutator 24v/Top entry allows inline access to valve parts

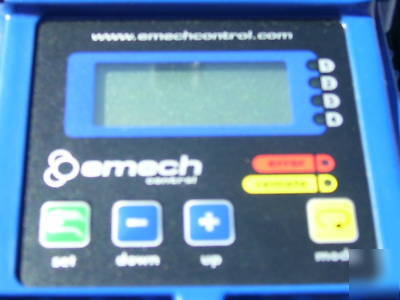

4)Key pad w/2keys 4 membrane switches w/safety switches external key-lock power switch
5)Constucted of 316 stainless steel/durable and corrosion resistant
6)Plus/minus 1 degree accurate operating temp. Operating temp. 32 degrees F to 212 degrees F
7)Cycle and perf. logging capability external RS232 connection (M8)
9)Local and remote control options w/manual override safety interlock
