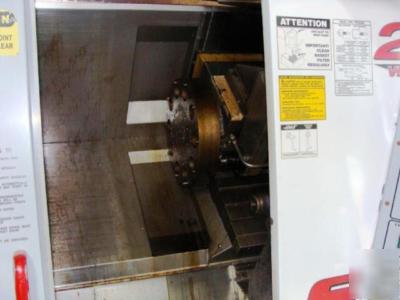

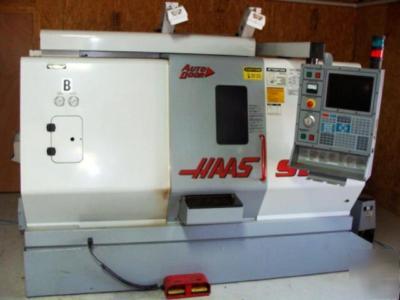

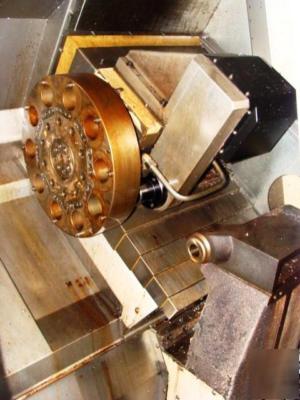

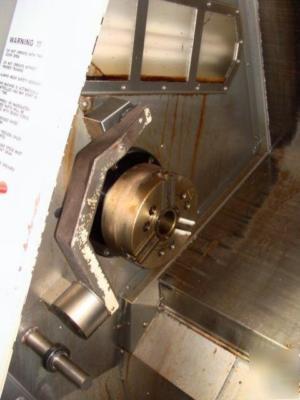

New haas, sl-20, sl-20T cnc lathe, live tooling, : 2000
-MAX CUTTING DIAMETER : 10.3 "
-MAX CUTTING LENGTH W/STD WORKHOLDING: 19.0 "
-MAX TORQUE: 154 FT-LB @ 650 RPM
-MAX TORQUE 120 FT-LB @1400 RPM
-MAX TORQUE 80 FT-LB @1400 RPM
-OD VS ID TOOLS ANY COMBINATION
-TOOL SIZE (OD TURNING): 1.00 "
-BORING BAR REAR CLEARANCE (FROM TURRET FACE): 4.37 "
-TORQUE (PEAK W/HT OPTION): 195 IN-LB
-AIR REQUIRED: 4 SCFM, 100 PSI
-POWER (OPTIONS MAY INCREASE REQUIREMENT): 195-260 VAC/50 A
-354-488 VAC/30 A 195-260 VAC/50 A
