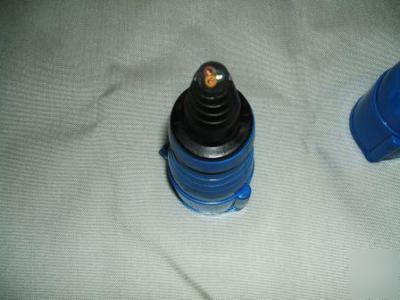

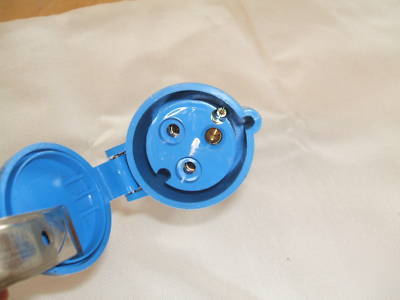

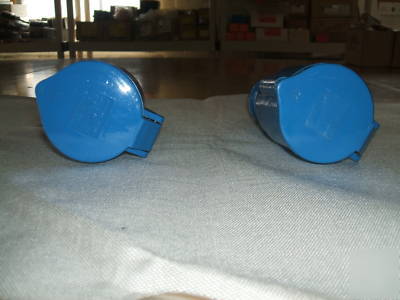

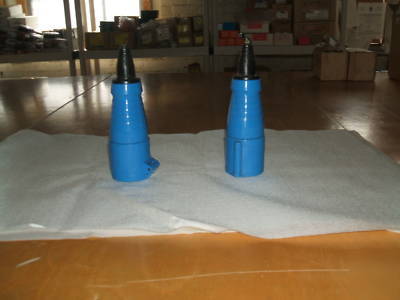

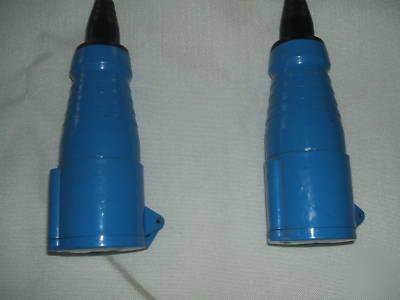

Lot of 2 interpower connector 84332201
Lot of 2 Interpower Connector 84332201
Part Number: 84332201 Hour Designation: 6
Int'l Current Rating: 32A Number of Contacts: 3
Int'l Voltage Rating: 200-250VAC Contact Material: Brass
N.A. Current Rating: 30A Pilot Contact: no
N.A. Voltage Rating: 250VAC Cable Size : 8 AWG / 4.0mm
Temperature Rating: -25 C to +140 C Body Type : Connector
Flammability Rating: UL 94V-2 General Material: Polyamide 6
Ingress Protection Rating: IP 44 Color: Blue
Phase : Single Phase CE Marking: yes
http:// /drawings/84332201.pdf
